MDR-100

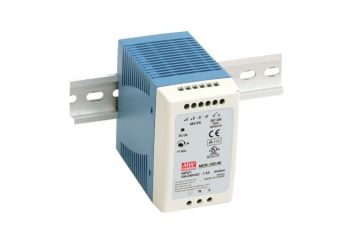

Industrial DIN rail power supply: MDR-100-24, MDR-100-12, MDR-100-48
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- ZCS/ZVS technology to reduce power dissipation
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- DC OK relay contact
- No load power consumption<1W
- LED indicator for power on
- 100% full load burn-in test
Price from €31.70 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-100-24DIN rail power supply 100W 24V 4AIn stockWarranty: €31.70€38.99Login to check your price MDR-100-24DIN rail power supply 100W 24V 4AAvailability:In stockNet price:€31.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-100-12DIN rail power supply 100W 12V 7.5AIn stockWarranty: €31.70€38.99Login to check your price MDR-100-12DIN rail power supply 100W 12V 7.5AAvailability:In stockNet price:€31.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-100-48DIN rail power supply 100W 48V 2AIn stockWarranty: €31.70€38.99Login to check your price MDR-100-48DIN rail power supply 100W 48V 2AAvailability:In stockNet price:€31.70
Description
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- ZCS/ZVS technology to reduce power dissipation
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- DC OK relay contact
- No load power consumption<1W
- LED indicator for power on
- 100% full load burn-in test
Available models:
- 12V: MDR-100-12
- 24V: MDR-100-24
- 48V: MDR-100-48
Technical Specification
MDR-100: 90-96W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| MDR-100-12 | 12V, 0~7.5A | +/-1% | 120mV | 85% | 50x90x100mm |
| MDR-100-24 | 24V, 0~4.0A | +/-1% | 150mV | 86% | 50x90x100mm |
| MDR-100-48 | 48V, 0~2.0A | +/-1% | 200mV | 88% | 50x90x100mm |
