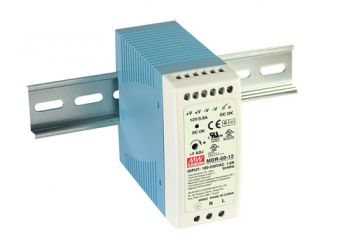

MDR-60
Industrial DIN rail power supply: MDR-60-12, MDR-60-5, MDR-60-48, MDR-60-24
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Class l, Div 2 Hazardous Locations T4
- LED indicator for power on
- DC OK relay contact
- No load power consumption<0.75W
- 100% full load burn-in test
Price from €18.30 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-60-12DIN rail power supply 60W 12V 5AIn stockWarranty: €18.30€22.51Login to check your price MDR-60-12DIN rail power supply 60W 12V 5AAvailability:In stockNet price:€18.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-60-5DIN rail power supply 60W 5V 10AIn stockWarranty: €18.30€22.51Login to check your price MDR-60-5DIN rail power supply 60W 5V 10AAvailability:In stockNet price:€18.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-60-48DIN rail power supply 60W 48V 1.25AIn stockWarranty: €18.30€22.51Login to check your price MDR-60-48DIN rail power supply 60W 48V 1.25AAvailability:In stockNet price:€18.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-60-24DIN rail power supply 60W 24V 2.5AIn delivery Warranty: €18.30€22.51Login to check your price MDR-60-24DIN rail power supply 60W 24V 2.5AAvailability: In deliveryNet price:€18.30
Description
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Class l, Div 2 Hazardous Locations T4
- LED indicator for power on
- DC OK relay contact
- No load power consumption<0.75W
- 100% full load burn-in test
Available models:
- 5V: MDR-60-5
- 12V: MDR-60-12
- 24V: MDR-60-24
- 48V: MDR-60-48
Technical Specification
- MDR-60: 50-60W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| MDR-60-5 | 5V, 0~10A | +/-2% | 80mV | 78% | 40x90x100mm |
| MDR-60-12 | 12V, 0~5A | +/-1% | 120mV | 86% | 40x90x100mm |
| MDR-60-24 | 24V, 0~2.5A | +/-1% | 150mV | 88% | 40x90x100mm |
| MDR-60-48 | 48V, 0~1.25A | +/-1% | 200mV | 88% | 40x90x100mm |
