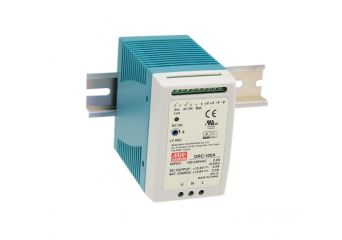

DRC-100
100W DIN rail power supply with UPS function: DRC-100A, DRC-100B
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Battery low protection / Battery reverse polarity protection by fuse
- Can be installed on DIN rail TS-35/7.5 or 15
- Alarm signal for AC OK and Battery low (via relay)
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRC-100Apower supply 100W 13.8V 7A, 13.8V 2.5AIn stockWarranty: €45.40€55.84Login to check your price DRC-100Apower supply 100W 13.8V 7A, 13.8V 2.5AAvailability:In stockNet price:€45.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRC-100Bpower supply 100W 27.6V 3.5A, 27.6V 1.25AIn stockWarranty: €45.40€55.84Login to check your price DRC-100Bpower supply 100W 27.6V 3.5A, 27.6V 1.25AAvailability:In stockNet price:€45.40
Description
DRC-100 is a 96W AC/DC DIN rail type security power supply series. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application the security access systems require. DRC-100 accepts the universal input between 90VAC and 264VAC, and supplies 13.8VDC and 27.6VDC at output, respectively. With the efficiency up to 89%, it can operate with air convection cooling under -30ºC through 70ºC. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is provided, via relay contact output, to facilitate the system design.
Available models:
- 13.8V: DRC-100A
- 27.6V: DRC-100B
Technical Specification
DRC-100: 97W output with battery charging DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| DRC-100A | 13.8V, 0~7.0A 13.8V, 0~2.5A |
+/-1% (charging) |
120mV | 86% | 97W | 55x90x100mm |
| DRC-100B | 27.6V, 0~3.5A 27.6V, 0~1.25A |
+/-1% (charging) |
240mV | 88% | 97W | 55x90x100mm |
