new

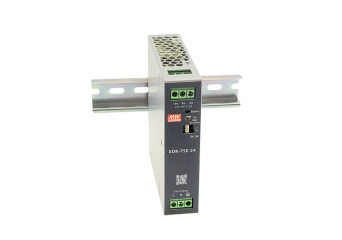

XDR-75E

Economical Ultra Slim Industrial DIN Rail Power Supply

  • High efficiency up to 91% and no load power dissipation<1W
  • Over voltage category III (OVC III)
  • 30mm slim width
  • Global certificates in multi-fields(ITE 62368-1,Industrial 61558-1/-2-16,61010)
  • 85~264Vac input range
  • Built-in constant current limiting circuit
  • Protections: Short circuit / Overload / Over voltage/ Over temperature
    Fanless design, cooling by free air convection
  • -40~+70C wide range operation temperature (>+50℃ derating)
  • Operating altitude up to 5000 meters
  • Built-in DC OK relay contact
  • Can be installed on DIN rail TS-35/7.5 or 15
  • 3 years warranty
Price from €20.20 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 4 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only
XDR-75E

XDR-75E

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    XDR-75E-12
    DIN rail power supply 75.6W 12V 6.3A
    Out of stock Warranty:
    €20.20
    €24.85
    Login to check your price
    24 pieces in box
    XDR-75E-12
    DIN rail power supply 75.6W 12V 6.3A
    Availability: Out of stock
    Net price:
    €20.20
    24 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    XDR-75E-24
    DIN rail power supply 76.8W 24V 3.2A
    In stock
    Warranty:
    €20.20
    €24.85
    Login to check your price
    24 pieces in box
    XDR-75E-24
    DIN rail power supply 76.8W 24V 3.2A
    Availability:
    In stock
    Net price:
    €20.20
    24 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    XDR-75E-36
    DIN rail power supply 75.6W 36V 2.1A
    Out of stock Warranty:
    €20.20
    €24.85
    Login to check your price
    24 pieces in box
    XDR-75E-36
    DIN rail power supply 75.6W 36V 2.1A
    Availability: Out of stock
    Net price:
    €20.20
    24 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    XDR-75E-48
    DIN rail power supply 76.8W 48V 1.6A
    Out of stock Warranty:
    €20.20
    €24.85
    Login to check your price
    24 pieces in box
    XDR-75E-48
    DIN rail power supply 76.8W 48V 1.6A
    Availability: Out of stock
    Net price:
    €20.20
    24 pieces in box

Description

The XDR-75E series is a 75W AC/DC economical ultra slim industrial DIN rail power. Key features of this series include a narrow 30mm casing, optimizing system installation space, and an ultra-wide input
range of 85~264Vac suitable for global use. It boasts a maximum efficiency of 91% and a low standby power consumption <1W for energy savings and carbon reduction. It has built-in constant current, fanless design, a wide operating temperature range of -40 to +70 (up to +50 at full load); OVCIII compliance; built-in DC OK signal. With comprehensive protection functions, complete safety certifications, and a 3 years warranty, the XDR-75E series is a compact, high-performance, and highly reliable DIN rail power supply.

Available models:

  • 12V: XDR-75E-12
  • 24V: XDR-75E-24
  • 36V: XDR-75E-36
  • 48V: XDR-75E-48

See additional MEAN WELL XDR-E series power supplies:

Technical Specification

XDR-75E: 75W Economical Ultra Slim Industrial DIN Rail Power -> Manufacturer specification

Model Input voltage Output parameters Output voltage tolerance Efficiency Dimension
(LxWxH)
XDR-75E-12 85~264VAC 120~370VDC 12V, 0~6.3A +/-2% 89% 30x125.2x116mm
XDR-75E-24 85~264VAC 120~370VDC 24V, 0~3.2A +/-1% 90% 30x125.2x116mm
XDR-75E-36 85~264VAC 120~370VDC 36V, 0~2.1A +/-1% 91% 30x125.2x116mm
XDR-75E-48 85~264VAC 120~370VDC 48V, 0~1.6A +/-1% 91% 30x125.2x116mm
