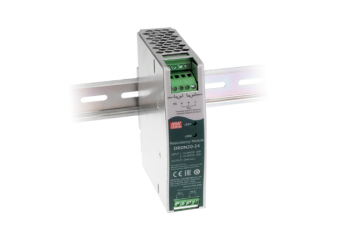

DRDN20
20A power supply redundancy module: DRDN20-12, DRDN20-24, DRDN20-48
- Support 1+1 and N+1 redundancy system
- 2 channels input and 1 output
- Suitable for redundancy operation of 12V/24V/48V system
- Output current up to 20A
- Cooling by free air convection
- -40~+80ºC ultra-wide operating temperature ( >+60ºC derating)
- 32mm slim width
- Built-in 2 channels DC OK signal and alarm relay contact
- Installed on DIN Rail TS35/7.5 or 15
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRDN20-12power supply redundancy module 12V 20AIn stockWarranty: €22.60€27.80Login to check your price DRDN20-12power supply redundancy module 12V 20AAvailability:In stockNet price:€22.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRDN20-24power supply redundancy module 24V 20AIn stockWarranty: €22.60€27.80Login to check your price DRDN20-24power supply redundancy module 24V 20AAvailability:In stockNet price:€22.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRDN20-48power supply redundancy module 48V 20AIn stockWarranty: €22.60€27.80Login to check your price DRDN20-48power supply redundancy module 48V 20AAvailability:In stockNet price:€22.60
Description
The DRDN20 series is a 20A redundancy module that can be used with a power supply to improve overall system operation reliability. Product key features include:12V/24V/48V input voltage for selection, support N+1 and 1+1 redundancy systems, built-in two rails DC input contacts and single output. The MOSFET technology implemented can reduce heat loss and reduce the voltage difference between the input and output voltages, built-in 2 channels DC OK relay contacts for monitoring output status, ultra-wide operating temperature of -40 to +80ºC and narrow width (32mm).
Available models:
- 12V: DRDN20-12
- 24V: DRDN20-24
- 48V: DRDN20-48
Technical Specification
DRDN20: 20A DETAILS
| Model | Output | Reverse voltage (max) | Input current (max) | Dimension |
| DRDN20 | 12,24,48V, 20A | 60V | 20A | 35x125.2x100mm |
