- Support 1+1 and N+1 redundancy system
- 2 channels input and 1 output
- Suitable for redundancy operation of 12V/24V/48V system
- Output current up to 40A
- Cooling by free air convection
- -40~+80ºC ultra-wide operating temperature ( >+60ºC derating)
- 55mm slim width
- Built-in 2 channels DC OK signal and alarm relay contact
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRDN40-12power supply redundancy module 12V 40AIn stockWarranty: €32.00€39.36Login to check your price DRDN40-12power supply redundancy module 12V 40AAvailability:In stockNet price:€32.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRDN40-24power supply redundancy module 24V 40AIn stockWarranty: €32.00€39.36Login to check your price DRDN40-24power supply redundancy module 24V 40AAvailability:In stockNet price:€32.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRDN40-48power supply redundancy module 48V 40AIn stockWarranty: €32.00€39.36Login to check your price DRDN40-48power supply redundancy module 48V 40AAvailability:In stockNet price:€32.00
Description

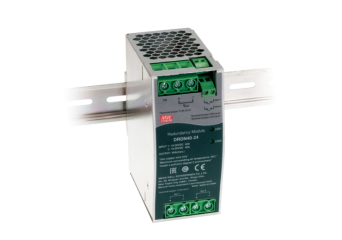

The DRDN40 series is a 40A redundancy module that can be used with a power supply to improve overall system operation reliability. Product key features include:12V/24V/48V input voltage for selection, support N+1 and 1+1 redundancy systems,built-in two rails DC input contacts andsingle output. The MOSFET technology implemented can reduce heat loss and reduce the voltage difference between the input and output voltages, built-in 2 channels DC OK relay contacts for monitoring output status, ultra-wide operating temperature of -40 to +80ºC and narrow width (55mm).
Available models:
- 12V: DRDN40-12
- 24V: DRDN40-24
- 48V: DRDN40-48
Technical Specification
DRDN40: 40A DETAILS
| Model | Output | Reverse voltage (max) | Input current (max) | Dimension |
| DRDN40 | 12,24,48V, 40A | 60V | 40A | 55x125.2x100mm |
