Manufacturer: MEAN WELL
- Standard 2 "x1 "DIP housing
- Wide input voltage range 9~75Vdc (8:1)
- Operating temperature range -40 ~ +90 ℃
- No minimum load required
- Compliance with BS EN/EN55032 Class A
- Efficiency of up to 89%
- Protections: Short-circuit / Overload / Over-voltage / Under-voltage
- 3KVdc input/output isolation
- Remote ON/OFF control (on demand, MOQ)
- 3 year warranty
Discounted prices and exact stock levels can be seen by logging on to the e-store.
Price from €30.50 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDKA20W8-12DC/DC module 20W 9~75V ±12V ±0.833AOut of stock Warranty: €30.50€37.52Login to check your price DKA20W8-12DC/DC module 20W 9~75V ±12V ±0.833AAvailability: Out of stockNet price:€30.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDKA20W8-15DC/DC module 20W 9~75V/ ±15V ±0.666AOut of stock Warranty: €30.50€37.52Login to check your price DKA20W8-15DC/DC module 20W 9~75V/ ±15V ±0.666AAvailability: Out of stockNet price:€30.50
Description

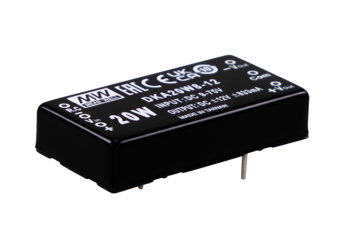

DKA20W8 are 20W isolated regulated DC-DC converters in a 2 "x1" DIP package. They feature international standard pinóing, high efficiency up to 89%, wide operating temperature range of -40~+90℃, 3KVdc I/P-O/P isolation voltage, BS EN/EN55032 Class A compliance without additional componentsów. They feature short-circuit, overload, overvoltage and under-voltage input protection. The models have a wide input range of 9~75Vdc 8:1 and output voltages, 3.3V/5V/9V/12V/15V/24V suitable for all typesóof systems such as industrial automation or telecommunications.
Technical Specification
- MEAN WELL DKA20W8: 20W dual output DC/DC converter Manufacturer's documentation (specifications, others)
| Model | Input | Output | Input | Dimensions |
| DKA20W8-12 | 9~75V | ±12V, 0.83A | 150mV | 50.8x25.4x11.2mm |
| DKA20W8-15 | 9~75V | ±15V, 0.67A | 150mV | 50.8x25.4x11.2mm |
