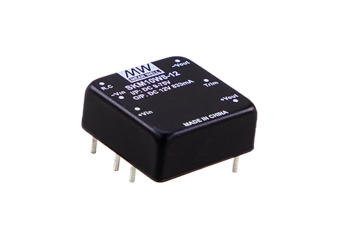

DKM10W8
- DIP 1"x1" package with industry standard pinout
- 8:1(9~75Vdc) ultra-wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- High efficiency up to 85%
- Protections: Short circuit (Continuous) / Overload /
Over voltage / UVLO - 3KVdc I/O isolation
- Remote ON/OFF control
- Triming output (±10%)
- 3 years warranty
Discounted prices and exact stock levels are visible once you have logged in to the online shop.
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDKM10W8-05DC/DC module 10W 9~75V/ ±5V ±1AOut of stock Warranty: €17.20€21.16Login to check your price DKM10W8-05DC/DC module 10W 9~75V/ ±5V ±1AAvailability: Out of stockNet price:€17.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDKM10W8-12DC/DC module 10W 9~75V ±12V ±0.417AOut of stock Warranty: €17.20€21.16Login to check your price DKM10W8-12DC/DC module 10W 9~75V ±12V ±0.417AAvailability: Out of stockNet price:€17.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDKM10W8-15DC/DC module 10W 9~75V/ ±15V ±0.33AOut of stock Warranty: €17.20€21.16Login to check your price DKM10W8-15DC/DC module 10W 9~75V/ ±15V ±0.33AAvailability: Out of stockNet price:€17.20
Description
SKM10W8 and DKM10W8 series are 10W isolated and regulated module type DC-DC converter with
DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working
temperature range -40~+90℃, 3KVdc I/P-O/P isolation voltage, Continuous-mode short circuit,
overload, over voltage, input under voltage protection, etc. The models account for 8:1(9~75Vdc)
ultra-wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±
12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control,
telecommunication field, distributed power architecture, and so on.
Technical Specification
- DKM10W8: 10W DC/DC converter Manufacturer's documentation (specifications, others)
| Model | Input | Output | Ripple&Noise | Dimensions |
| DKM10W8-05 | 9~75V | 12V, 2A | 120mVpp | 25.4x25.4x11.2mm |
| DKM10W8-12 | 9~75V | 24V, 0.83A | 120mVpp | 25.4x25.4x11.2mm |
| DKM10W8-15 | 9~75V | 15V, 0.67A | 120mVpp | 25.4x25.4x11.2mm |
