Manufacturer: MEAN WELL
- Standard 2 "x1 "DIP housing
- Wide input voltage range 9~75Vdc (8:1)
- Operating temperature range -40 ~ +90 ℃
- No minimum load required
- Compliance with BS EN/EN55032 Class A
- Efficiency of up to 90%
- Protections: Short-circuit / Overload / Overvoltage / Undervoltage
- 3KVdc input/output isolation
- Remote ON/OFF control
- Regulated output (±10%)
- 3-year warranty
Discounted prices and exact stock can be seen by logging on to the e-store.
Price from €25.90 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
DKMW30W8
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDKMW30W8-12DC/DC module 30W 9~75V ±12V ±1.25AOut of stock Warranty: €25.90€31.86Login to check your price DKMW30W8-12DC/DC module 30W 9~75V ±12V ±1.25AAvailability: Out of stockNet price:€25.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDKMW30W8-15DC/DC module 30W 9~75V/ ±15V ±1AOut of stock Warranty: €25.90€31.86Login to check your price DKMW30W8-15DC/DC module 30W 9~75V/ ±15V ±1AAvailability: Out of stockNet price:€25.90
Description

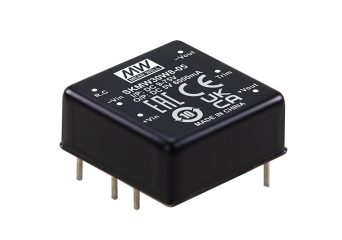

SKMW30W8 are 30W isolated regulated DC-DC converters in a 2 "x1" DIP package. They feature international standard pinóing, high efficiency of up to 90%, wide operating temperature range of -40~+90℃, 3KVdc I/P-O/P isolation voltage, BS EN/EN55032 Class A compliance with no additional componentsów. They feature short-circuit, overload, overvoltage and under-voltage input protection. The models have a wide input range of 9~75Vdc 8:1 and an output voltage, 3.3V/5V/12V/15V/24V suitable for all typesóof systemsósuch as industrial automation or telecommunications.
Technical Specification
- DKMW30W8: 30W DC/DC converter Manufacturer's documentation (specifications, other)
| Model | Input | Output | Ripple&Noise | Dimensions |
| DKMW30W8-12 | 9~75V | ±12V, 2A | 150mV | 50.8x25.4x11.2mm |
| DKMW30W8-15 | 9~75V | ±15V, 1A | 150mV | 50.8x25.4x11.2mm |
