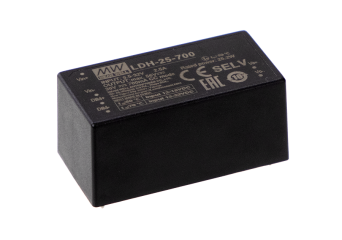

LDH-25
LED DC / DC current driver: LDH-25-250, LDH-25-350, LDH-25-500, LDH-25-700
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- DC driver 'step-up'
- wide input voltage range: 9.5 ~ 32VDC
- efficiency up to 95%
- 0-10VDC and PWM analog dimming
- short-circuit and overvoltage protection
- small size
- "W" version with led out wires
- working temperature -40 ~ + 70oC
- cooling in open air circulation
- closed plastic housing in accordance with UL 94V-0
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €8.60 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-25-250DC/DC LED driver 9.5~32V/ 12.5~84V 0.25AOut of stock Warranty: €8.60€10.58Login to check your price LDH-25-250DC/DC LED driver 9.5~32V/ 12.5~84V 0.25AAvailability: Out of stockNet price:€8.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-25-350DC/DC LED driver 9.5~32V/ 12.5~72V 0.35AOut of stock Warranty: €8.60€10.58Login to check your price LDH-25-350DC/DC LED driver 9.5~32V/ 12.5~72V 0.35AAvailability: Out of stockNet price:€8.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-25-500DC/DC LED driver 9.5~32V/ 12.5~50V 0.5AOut of stock Warranty: €8.60€10.58Login to check your price LDH-25-500DC/DC LED driver 9.5~32V/ 12.5~50V 0.5AAvailability: Out of stockNet price:€8.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-25-700DC/DC LED driver 9.5~32V/ 12.5~36V 0.7AOut of stock Warranty: €8.60€10.58Login to check your price LDH-25-700DC/DC LED driver 9.5~32V/ 12.5~36V 0.7AAvailability: Out of stockNet price:€8.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-25-250WDC/DC LED driver 9.5~32V/ 12.5~84V 0.25AOut of stock Warranty: €8.60€10.58Login to check your price LDH-25-250WDC/DC LED driver 9.5~32V/ 12.5~84V 0.25AAvailability: Out of stockNet price:€8.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-25-350WDC/DC LED driver 9.5~32V/ 12.5~72V 0.35AOut of stock Warranty: €8.60€10.58Login to check your price LDH-25-350WDC/DC LED driver 9.5~32V/ 12.5~72V 0.35AAvailability: Out of stockNet price:€8.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-25-500WDC/DC LED driver 9.5~32V/ 12.5~50V 0.5AOut of stock Warranty: €8.60€10.58Login to check your price LDH-25-500WDC/DC LED driver 9.5~32V/ 12.5~50V 0.5AAvailability: Out of stockNet price:€8.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDH-25-700WDC/DC LED driver 9.5~32V/ 12.5~36V 0.7AOut of stock Warranty: €8.60€10.58Login to check your price LDH-25-700WDC/DC LED driver 9.5~32V/ 12.5~36V 0.7AAvailability: Out of stockNet price:€8.60
Description
LDH series DC / DC controllers are intended for use in LED lighting, mainly to supply LEDs with a constant current. They are characterized by stable output parameters and high efficiency. Two versions are available, for PCB or with leads out. The devices can be dimmed using two methods: 0-10VDC signal or PWM signal. The controllers can be used, for example, in street lighting fittings, high-bay fittings, greenhouse fittings, and portable LED floodlights.
Technical Specification
- LDH-25: driver LED DC/DC 21~25W SPECIFICATION
| Model | Input | Output | Tolerance | Efficiency | Dimensions |
| LDH-25-250 | 9.5~32VDC | 12~84VDC, 250mA | +/-5 | 91% | 52.4x27.2x24mm |
| LDH-25-350 | 9.5~32VDC | 12~72VDC, 350mA | +/-5 | 92% | 52.4x27.2x24mm |
| LDH-25-500 | 9.5~32VDC | 12~50VDC, 500mA | +/-5 | 91% | 52.4x27.2x24mm |
| LDH-25-700 | 9.5~32VDC | 12~36VDC, 700mA | +/-5 | 92% | 52.4x27.2x24mm |
