- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 94%
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage /
- Over temperature
- Medical safety approved (2 MOPP)×
- Suitable for BF application with appropriate system
- consideration
- Built-in cooling fan ON-OFF control
- Current sharing up to 4000W (3+1)
- Built-in DC OK signal
- Built-in remote ON-OFF control
- Standby 5V@0.3A
- Built-in remote sense function
- No load power consumption<0.75W
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
MSP-1000
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-1000-12medical switching power supply 960W 12V 80AOut of stock Warranty: €207.40€255.10Login to check your price MSP-1000-12medical switching power supply 960W 12V 80AAvailability: Out of stockNet price:€207.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-1000-15medical switching power supply 960W 15V 64AOut of stock Warranty: €207.40€255.10Login to check your price MSP-1000-15medical switching power supply 960W 15V 64AAvailability: Out of stockNet price:€207.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-1000-24medical switching power supply 1008W 24V 42AOut of stock Warranty: €207.40€255.10Login to check your price MSP-1000-24medical switching power supply 1008W 24V 42AAvailability: Out of stockNet price:€207.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-1000-48medical switching power supply 1008W 48V 21AOut of stock Warranty: €207.40€255.10Login to check your price MSP-1000-48medical switching power supply 1008W 48V 21AAvailability: Out of stockNet price:€207.40
Description

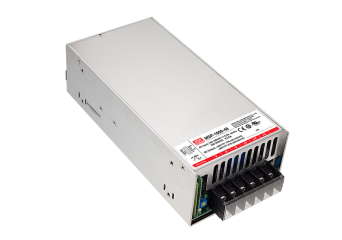

MSP-1000 is a single output enclosed type AC/DC power supply delivering 1000W output power fo r a wide range of medical applications. The entire series operates for 90~264 VAC input voltage and supplies different output voltages between 12V and 48V that can satisfy the demands for all kinds of medical equipments. Meanwhile, the circuitry design meets the international medical standards, 2x MOPP, suitable for medical electrical devices. MSP-1000 is equipped with various built-in functions such as auxiliary power, remote sense and remote on-off control, offering vast design flexibility for the purpose of using control solutions.
Technical Specification
- MSP-1000: Enclosed medical power supply 960~1008W (specification)
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| MSP-1000-12 | 12V, 0~80A | +/-2% | 150mV | 91,5% | 218x105x63.5mm |
| MSP-1000-15 | 15V, 0~64A | +/-1.5% | 150mV | 92% | 218x105x63.5mm |
| MSP-1000-24 | 24V, 0~42A | +/-1% | 200mV | 93% | 218x105x63.5mm |
| MSP-1000-48 | 48V, 0~21A | +/-1% | 250mV | 94% | 218x105x63.5mm |
