Manufacturer: MEAN WELL
- input voltage 85-264VAC, 120-370VDC
- compliance with medical standards (MOOP level)
- low leakage current ≤300μA
- withstand overvoltage of 300VAC for 5 seconds
- built-in active PFC function
- protections: short circuit, overvoltage, overload, thermal
- the ability to adjust the output voltage in the range of +/- 15%
- built-in dc current limitation at the output
- working temperature -40 + 60 ° C
- remote on / off
- 1U low profile
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €47.80 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-100-3.3medical switching power supply 100W 3.3V 20AOut of stock Warranty: €47.80€58.79Login to check your price MSP-100-3.3medical switching power supply 100W 3.3V 20AAvailability: Out of stockNet price:€47.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-100-5medical switching power supply 100W 5V 17AOut of stock Warranty: €47.80€58.79Login to check your price MSP-100-5medical switching power supply 100W 5V 17AAvailability: Out of stockNet price:€47.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-100-7.5medical switching power supply 100W 7.5V 13.5AOut of stock Warranty: €47.80€58.79Login to check your price MSP-100-7.5medical switching power supply 100W 7.5V 13.5AAvailability: Out of stockNet price:€47.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-100-12medical switching power supply 100W 12V 8.5AIn stockWarranty: €47.80€58.79Login to check your price MSP-100-12medical switching power supply 100W 12V 8.5AAvailability:In stockNet price:€47.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-100-15medical switching power supply 100W 15V 7AOut of stock Warranty: €47.80€58.79Login to check your price MSP-100-15medical switching power supply 100W 15V 7AAvailability: Out of stockNet price:€47.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-100-24medical switching power supply 100W 24V 4.5AIn stockWarranty: €47.80€58.79Login to check your price MSP-100-24medical switching power supply 100W 24V 4.5AAvailability:In stockNet price:€47.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-100-36medical switching power supply 100W 36V 2.9AOut of stock Warranty: €47.80€58.79Login to check your price MSP-100-36medical switching power supply 100W 36V 2.9AAvailability: Out of stockNet price:€47.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-100-48medical switching power supply 100W 48V 2.2AOut of stock Warranty: €47.80€58.79Login to check your price MSP-100-48medical switching power supply 100W 48V 2.2AAvailability: Out of stockNet price:€47.80
Description

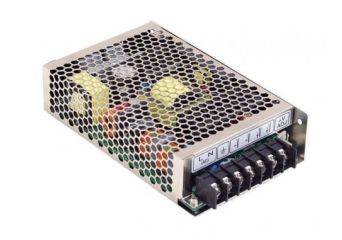

The MSP-100 MEAN WELL power supply has a low leakage current and complies with medical standards, so it can be used to power all types of medical equipment.
Technical Specification
- MSP-100: Enclosed medical power supply 66~108W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| MSP-100-3.3 | 3.3V, 0~20A | +2.5%, -3,5% | 80mV | 78% | 159x97x38mm |
| MSP-100-5 | 5V, 0~17A | +/-2.5% | 80mV | 83% | 159x97x38mm |
| MSP-100-7.5 | 7.5V, 0~13.5A | +/-2.5% | 100mV | 84% | 159x97x38mm |
| MSP-100-12 | 12V, 0~8.5A | +/-1.5% | 120mV | 88% | 159x97x38mm |
| MSP-100-15 | 15V, 0~7.0A | +/-1.5% | 150mV | 88% | 159x97x38mm |
| MSP-100-24 | 24V, 0~4.5A | +/-1.5% | 150mV | 89% | 159x97x38 |
| MSP-100-36 | 36V, 0~2.9A | +/-1.5% | 200mV | 89% | 159x97x38mm |
| MSP-100-48 | 48V, 0~2.2A | +/-1.5% | 240mV | 90% | 159x97x38mm |
