Manufacturer: MEAN WELL
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 94%
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in cooling fan ON-OFF control
- Current sharing up to 4000W (3+1)
- Built-in DC OK signal
- Built-in remote ON-OFF control
- Standby 5V@0.3A
- Built-in remote sense function
- No load power consumption<0.75W (Note.6)
Price from €190.70 Net price
High price? Log in and buy cheaper
In delivery
Free shipping from €300
Promocja cenowa na model HDR-15-5
HRPG-1000
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRPG-1000-12switching power supply 960W 12V 80AOut of stock Warranty: €190.70€234.56Login to check your price HRPG-1000-12switching power supply 960W 12V 80AAvailability: Out of stockNet price:€190.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRPG-1000-15switching power supply 960W 15V 64AOut of stock Warranty: €190.70€234.56Login to check your price HRPG-1000-15switching power supply 960W 15V 64AAvailability: Out of stockNet price:€190.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRPG-1000-24switching power supply 1008W 24V 42AOut of stock Warranty: €190.70€234.56Login to check your price HRPG-1000-24switching power supply 1008W 24V 42AAvailability: Out of stockNet price:€190.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRPG-1000-48switching power supply 1008W 48V 21AIn delivery Warranty: €190.70€234.56Login to check your price HRPG-1000-48switching power supply 1008W 48V 21AAvailability: In deliveryNet price:€190.70
Description

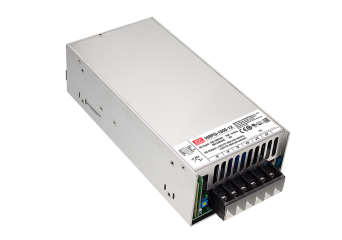

HRPG-1000 is a single output enclosed type AC/DC power supply providing 1000W output power for a wide range of industrial applications. This series operates for 90~264VAC input voltage and offers models with different rated voltage ranging between 12 and 48 V that can satisfy the demands for all kinds of industrial equipments. Each model is cooled by the built-in fan with speed control, working for the temperature up to 70°C. Moreover, HRPG-1000 has various built-in functions such as auxiliary power, remote sense and remote on-off control, offering vast design flexibility for industrial application.
Available models:
- 12V: HRPG-600-12
- 15V: HRPG-600-15
- 24V: HRPG-600-24
- 48V: HRPG-600-48
Technical Specification
- HRPG-1000: Built-in power supply with PFC: SPECIFICATION
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| HRPG-1000-12 | 12V, 0~800A | +/-2% | 150mV | 91.5% | 218x105x63.5mm |
| HRPG-1000-15 | 15V, 0~64A | +/-1,5% | 150mV | 92% | 218x105x63.5mm |
| HRPG-1000-24 | 24V, 0~42A | +/-1% | 200mV | 93% | 218x105x63.5mm |
| HRPG-1000-48 | 48V, 0~21A | +/-1% | 250mV | 94% | 218x105x63.5mm |
