Manufacturer: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -25 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €13.90 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRD-35Aswitching power supply 35W 5V 4A, 12V 1AIn delivery Warranty: €13.90€17.10Login to check your price RD-35Aswitching power supply 35W 5V 4A, 12V 1AAvailability: In deliveryNet price:€13.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRD-35Bswitching power supply 35W 5V 4A, 24V 1.3AIn stockWarranty: €13.90€17.10Login to check your price RD-35Bswitching power supply 35W 5V 4A, 24V 1.3AAvailability:In stockNet price:€13.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRD-3513switching power supply 35W 13.5V 2A, -13,5VIn stockWarranty: €13.90€17.10Login to check your price RD-3513switching power supply 35W 13.5V 2A, -13,5VAvailability:In stockNet price:€13.90
Description

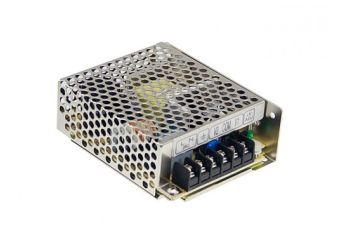

The RD-35 power supply has 2 outputs: 5VDC and (depending on the model 12 or 24 VDC). Additional holders allow for mounting on a DIN rail.
Technical Specification
- RD-35: Built-in 2-output power supply 32~35W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| RD-35A | 5V, 0.3~4.0A 12V, 0.2~1.0A |
+/-2% +/-6% |
80mV 120mV |
72% 77% |
32W | 99x82x36mm |
| RD-35B | 5V, 0.3~4.0A 24V, 0.2~1.3A |
+/-2% +/-5% |
80mV 120mV |
79% 82% |
35W | 99x82x36mm |
| RD-3513 | 13.5V, 0.3~2.0A -13,5V, 0.2~0.57A |
+/-4% +/-4% |
120mV 120mV |
82% 85% |
35W | 99x82x36mm |
