Manufacturer: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -25 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €18.20 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRD-65Aswitching power supply 65W 5V 8A, 12V 4AIn stockWarranty: €18.20€22.39Login to check your price RD-65Aswitching power supply 65W 5V 8A, 12V 4AAvailability:In stockNet price:€18.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRD-65Bswitching power supply 65W 5V 8A, 24V 3AIn stockWarranty: €18.20€22.39Login to check your price RD-65Bswitching power supply 65W 5V 8A, 24V 3AAvailability:In stockNet price:€18.20
Description

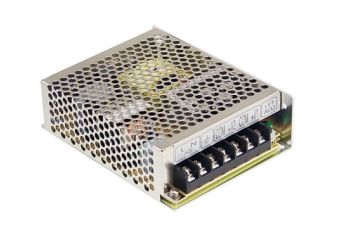

MEAN WELL RD-65 has two outputs and a common ground terminal. The output voltage is 5.12 or 5.24 vdc. By using additional handles, we can mount on a DIN rail.
Technical Specification
- RD-65: Enclosed 2-output power supply 66~68W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| RD-65A | 5V, 0.3~8.0A 12V, 0.2~4.0A |
+/-2% +/-6% |
80mV 120mV |
79% | 66W | 129x98x38mm |
| RD-65B | 5V, 0.3~8.0A 24V, 0.2~3.0A |
+/-2% +4%, -6% |
80mV 150mV |
80% | 68W | 129x98x38mm |
