Manufacturer: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €16.80 Net price
High price? Log in and buy cheaper
In delivery
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRT-50Aswitching power supply 50W 5V, 12V, -5VOut of stock Warranty: €16.80€20.66Login to check your price RT-50Aswitching power supply 50W 5V, 12V, -5VAvailability: Out of stockNet price:€16.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRT-50Bswitching power supply 50W 5V, 12V, -12VIn delivery Warranty: €16.80€20.66Login to check your price RT-50Bswitching power supply 50W 5V, 12V, -12VAvailability: In deliveryNet price:€16.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRT-50Cswitching power supply 50W 5V, 15V, -15VOut of stock Warranty: €16.80€20.66Login to check your price RT-50Cswitching power supply 50W 5V, 15V, -15VAvailability: Out of stockNet price:€16.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRT-50Dswitching power supply 50W 5V, 24V, 12VOut of stock Warranty: €16.80€20.66Login to check your price RT-50Dswitching power supply 50W 5V, 24V, 12VAvailability: Out of stockNet price:€16.80
Description

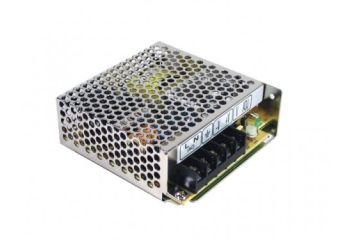

MEAN WELL RT-50 is characterized by three output channels and a solid, metal housing.
Technical Specification
- RT-50: Enclosed 3-output power supply 46~50W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| RT-50A | 5V, 0.5~5.0A 12V, 0.2~2.5A -5V, 0.1~1.0A |
+/-2% +/-6% +/-2% |
80mV 120mV 100mV |
77% | 46.5W | 99x97x36mm |
| RT-50B | 5V, 0.5~5.0A 12V, 0.2~2.5A -12V, 0.1~1.0A |
+/-2% +/-6% +/-2% |
80mV 120mV 120mV |
77% | 50W | 99x97x36mm |
| RT-50C | 5V, 0.5~5.0A 15V, 0.2~2.0A -15V, 0.1~1.0A |
+/-2% +8%,-4% +/-2% |
80mV 120mV 120mV |
78% | 50W | 99x97x36mm |
| RT-50D | 5V, 0.5~5.0A 24V, 0.2~1.5A 12V, 0.1~1.0A |
+/-2% +8%,-4% +/-2% |
80mV 150mV 120mV |
80% | 51W | 99x97x36mm |
