Manufacturer: MEAN WELL
- input voltage 85-264VAC, 127-370VDC
- built-in active PFC function
- protections: short circuit, overvoltage and overload protection
- Thermal protection
- cooling with a built-in fan
- the ability to adjust the output voltage in a small range
- working temperature -10 ~ + 50 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €113.10 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddQP-320Dswitching power supply 320W 5V,12V, 24V,-12VOut of stock Warranty: €113.10€139.11Login to check your price QP-320Dswitching power supply 320W 5V,12V, 24V,-12VAvailability: Out of stockNet price:€113.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddQP-320Fswitching power supply 320W 5V,15V, 24V,-15VOut of stock Warranty: €113.10€139.11Login to check your price QP-320Fswitching power supply 320W 5V,15V, 24V,-15VAvailability: Out of stockNet price:€113.10
Description

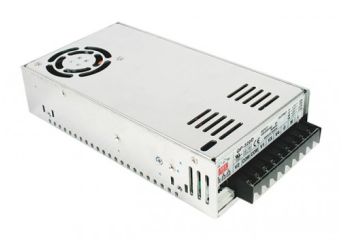

QP-320 MEAN WELL have 4 voltage outputs, and the total power of the power supply is 320w. In addition, they also feature active fan cooling.
Technical Specification
- QP-320: Enclosed 4-output power supply 316W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| QP-320D | 5V, 2.5~20A 12V, 0.0~10A 24V, 0.2~5.0A -12V, 0.2~2.0A |
+/-3% +/-3% +10%,-6% +/-10% |
100mV 150mV 150mV 150mV |
83% | 316W | 215x115x50mm |
| QP-320F | 5V, 2.5~20A 15V, 0.0~10A 24V, 0.2~5.0A -15V, 0.2~1.6A |
+/-3% +/-3% +10%,-6% +/-10% |
100mV 150mV 150mV 150mV |
83% | 316W | 215x115x50mm |
