Manufacturer: MEAN WELL
- input voltage 85-264VAC, 120-370VDC
- built-in active PFC function
- protections: short circuit, overvoltage and overload protection
- thermal protection HRP-150 HRPG-150
- the ability to adjust the output voltage in the range of +/- 15%
- cooling with open air circulation
- built-in output voltage drop compensation function
- working temperature -40 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- low power consumption in no-load condition
- 1U low profile
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €49.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-150-3.3switching power supply 150W 3.3V 30AOut of stock Warranty: €49.00€60.27Login to check your price HRP-150-3.3switching power supply 150W 3.3V 30AAvailability: Out of stockNet price:€49.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-150-5switching power supply 150W 5V 26AOut of stock Warranty: €49.00€60.27Login to check your price HRP-150-5switching power supply 150W 5V 26AAvailability: Out of stockNet price:€49.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-150-7.5switching power supply 150W 7.5V 20AOut of stock Warranty: €49.00€60.27Login to check your price HRP-150-7.5switching power supply 150W 7.5V 20AAvailability: Out of stockNet price:€49.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-150-12switching power supply 150W 12V 13AOut of stock Warranty: €49.00€60.27Login to check your price HRP-150-12switching power supply 150W 12V 13AAvailability: Out of stockNet price:€49.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-150-15switching power supply 150W 15V 10AIn stockWarranty: €49.00€60.27Login to check your price HRP-150-15switching power supply 150W 15V 10AAvailability:In stockNet price:€49.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-150-24switching power supply 150W 24V 6.5AIn stockWarranty: €49.00€60.27Login to check your price HRP-150-24switching power supply 150W 24V 6.5AAvailability:In stockNet price:€49.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-150-36switching power supply 150W 36V 4.3AOut of stock Warranty: €49.00€60.27Login to check your price HRP-150-36switching power supply 150W 36V 4.3AAvailability: Out of stockNet price:€49.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRP-150-48switching power supply 150W 48V 3.3AIn stockWarranty: €49.00€60.27Login to check your price HRP-150-48switching power supply 150W 48V 3.3AAvailability:In stockNet price:€49.00
Description

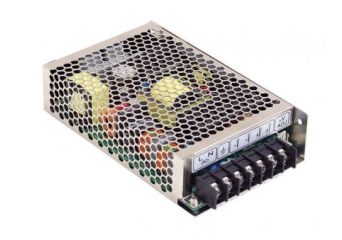

MEAN WELL HRP-150 power supplies have a metal housing and are cooled by free air flow - without the use of an additional fan.
Technical Specification
- HRP-150: Enclosed power supply with PFC 99~154W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| HRP-150-3.3 | 3.3V, 0~30A | +/-2.5% | 80mV | 80% | 159x97x38mm |
| HRP-150-5 | 5V, 0~26A | +/-2.5% | 80mV | 85% | 159x97x38mm |
| HRP-150-7.5 | 7.5V, 0~20A | +/-2.5% | 100mV | 87% | 159x97x38mm |
| HRP-150-12 | 12V, 0~13A | +/-1.5% | 120mV | 88% | 159x97x38mm |
| HRP-150-15 | 15V, 0~10A | +/-1.5% | 150mV | 88% | 159x97x38mm |
| HRP-150-24 | 24V, 0~6.5A | +/-1.5% | 150mV | 88% | 159x97x38mm |
| HRP-150-36 | 27V, 0~4.3A | +/-1.5% | 200mV | 88% | 159x97x38mm |
| HRP-150-48 | 48V, 0~3.3A | +/-1.5% | 240mV | 88% | 159x97x38mm |
