Manufacturer: MEAN WELL
- input voltage 85-264VAC, 120-370VDC
- built-in active PFC function
- protections: short circuit, overvoltage and overload protection
- the ability to adjust the output voltage in the range of -5 ~ + 10%
- cooling with open air circulation
- working temperature -40 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- low power consumption in no-load condition
- additional 5V "standby" output
- 1U low profile
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €67.80 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
HRPG-200
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRPG-200-3.3switching power supply 200W 3.3V 40AOut of stock Warranty: €67.80€83.39Login to check your price HRPG-200-3.3switching power supply 200W 3.3V 40AAvailability: Out of stockNet price:€67.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRPG-200-5switching power supply 200W 5V 35AOut of stock Warranty: €67.80€83.39Login to check your price HRPG-200-5switching power supply 200W 5V 35AAvailability: Out of stockNet price:€67.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRPG-200-7.5switching power supply 200W 7.5V 26.7AOut of stock Warranty: €67.80€83.39Login to check your price HRPG-200-7.5switching power supply 200W 7.5V 26.7AAvailability: Out of stockNet price:€67.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRPG-200-12switching power supply 200W 12V 16.7AIn stockWarranty: €67.80€83.39Login to check your price HRPG-200-12switching power supply 200W 12V 16.7AAvailability:In stockNet price:€67.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRPG-200-15switching power supply 200W 15V 13.4AOut of stock Warranty: €67.80€83.39Login to check your price HRPG-200-15switching power supply 200W 15V 13.4AAvailability: Out of stockNet price:€67.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRPG-200-24switching power supply 200W 24V 8.4AOut of stock Warranty: €67.80€83.39Login to check your price HRPG-200-24switching power supply 200W 24V 8.4AAvailability: Out of stockNet price:€67.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRPG-200-36switching power supply 200W 36V 5.7AOut of stock Warranty: €67.80€83.39Login to check your price HRPG-200-36switching power supply 200W 36V 5.7AAvailability: Out of stockNet price:€67.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHRPG-200-48switching power supply 200W 48V 4.3AOut of stock Warranty: €67.80€83.39Login to check your price HRPG-200-48switching power supply 200W 48V 4.3AAvailability: Out of stockNet price:€67.80
Description

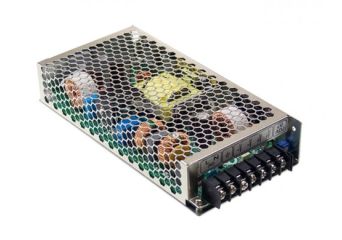

The HRPG-200 is a power supply with an output power of 200W and an additional 5 VDC standby output (unlike the HRP series).
Technical Specification
- HRPG-200: Enclosed power supply with PFC 132~206W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| HRPG-200-3.3 | 3.3V, 0~40A | +/-2% | 80mV | 80% | 199x98x38mm |
| HRPG-200-5 | 5V, 0~35A | +/-2.5% | 90mV | 84% | 199x98x38mm |
| HRPG-200-7.5 | 7.5V, 0~26.7A | +/-2% | 100mV | 86% | 199x98x38mm |
| HRPG-200-12 | 12V, 0~16.7A | +/-1% | 120mV | 88% | 199x98x38mm |
| HRPG-200-15 | 15V, 0~13.4A | +/-1% | 150mV | 88% | 199x98x38mm |
| HRPG-200-24 | 24V, 0~8.4A | +/-1% | 150mV | 88% | 199x98x38mm |
| HRPG-200-36 | 27V, 0~5.7A | +/-1% | 250mV | 89% | 199x98x38mm |
| HRPG-200-48 | 48V, 0~4.3A | +/-1% | 250mV | 90% | 199x98x38mm |
