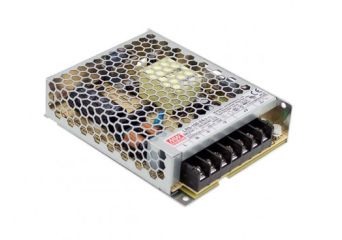

LRS-100
Enclosed power supply: LRS-100-3.3, LRS-100-5, LRS-100-12, LRS-100-15, LRS-100-24, LRS-100-48, LRS-100-36
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 second
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Miniature size and 1U low profile
- Compliance to IEC/EN 60335-1 (PD3) and lEC/EN61558-1, 2-16 for household appliances
- Operating altitude up to 5000 meters (Note.7)
- Withstand 5G vibration test
- LED indicator for power on
- No load power consumption<0.3W
- Over voltage category III
- 100% full load burn-in test
- High operating temperature up to 70ºC
- High efficiency, long life and high reliability
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-100-3.3switching power supply 66W 3.3V 20AOut of stock Warranty: €16.80€20.66Login to check your price LRS-100-3.3switching power supply 66W 3.3V 20AAvailability: Out of stockNet price:€16.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-100-5switching power supply 100W 5V 18AIn delivery Warranty: €16.80€20.66Login to check your price LRS-100-5switching power supply 100W 5V 18AAvailability: In deliveryNet price:€16.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-100-12switching power supply 100W 12V 8.5AIn stockWarranty: €14.30€17.59Login to check your price LRS-100-12switching power supply 100W 12V 8.5AAvailability:In stockNet price:€14.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-100-15switching power supply 100W 15V 7AOut of stock Warranty: €14.30€17.59Login to check your price LRS-100-15switching power supply 100W 15V 7AAvailability: Out of stockNet price:€14.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-100-24switching power supply 100W 24V 4.5AIn stockWarranty: €13.60€16.73Login to check your price LRS-100-24switching power supply 100W 24V 4.5AAvailability:In stockNet price:€13.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-100-48switching power supply 100W 48V 2.3AIn stockWarranty: €14.30€17.59Login to check your price LRS-100-48switching power supply 100W 48V 2.3AAvailability:In stockNet price:€14.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLRS-100-36switching power supply 100W 36V 2.8AOut of stock Warranty: €14.30€17.59Login to check your price LRS-100-36switching power supply 100W 36V 2.8AAvailability: Out of stockNet price:€14.30
Description
LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipation of LRS-100 that the whole series operates from -30ºC through 70ºC under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), ił allows the end system to easily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G anti-vibration capability; ił is complied with the international safety regulations such as TUV EN2368-1, EN60335-1, EN61558-1/-2-16, UL62368-1 and GB4943. LRS-100 series serves as a high price-to-performance power supply solution for various industrial applications.
Available models:
- 3.3V: LRS100-3.3
- 5V: LRS-100-5
- 12V: LRS-100-12
- 15V: LRS-100-15
- 24V: LRS-100-24
- 36V: LRS-100-36
- 48V: LRS-100-48
Technical Specification
LRS-100: 66-108W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| LRS-100-3.3 | 3.3V, 0~20A | +/-3% | 80mV | 84,5% | 129x97x30mm |
| LRS-100-5 | 5V, 0~18A | +/-2% | 100mV | 86% | 129x97x30mm |
| LRS-100-12 | 12V, 0~8.5A | +/-1% | 120mV | 88% | 129x97x30mm |
| LRS-100-15 | 15V, 0~7.0A | +/-1% | 120mV | 88.5% | 129x97x30mm |
| LRS-100-24 | 24V, 0~4.5A | +/-1% | 150mV | 90% | 129x97x30mm |
| LRS-100-36 | 36V, 0~2.8A | +/-1% | 200mV | 90.5% | 129x97x30mm |
| LRS-100-48 | 48V, 0~2.3A | +/-1% | 200mV | 91% | 129x97x30mm |
