RS-15

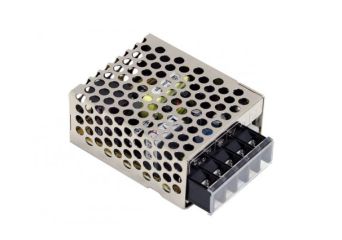

Enclosed power supply RS: RS-15-3.3, RS-15-5, RS-15-12, RS-15-15, RS-15-24, RS-15-48
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- No load power consumption<0.5W
- All using 105ºC long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70ºC
- Withstand 5G vibration test
- High efficiency, long life and high reliability
Price from €7.70 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-15-3.3switching power supply 10W 3.3V 3AIn delivery Warranty: €7.70€9.47Login to check your price RS-15-3.3switching power supply 10W 3.3V 3AAvailability: In deliveryNet price:€7.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-15-5switching power supply 15W 5V 3AIn stockWarranty: €7.70€9.47Login to check your price RS-15-5switching power supply 15W 5V 3AAvailability:In stockNet price:€7.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-15-12switching power supply 15W 12V 1.3AIn stockWarranty: €7.70€9.47Login to check your price RS-15-12switching power supply 15W 12V 1.3AAvailability:In stockNet price:€7.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-15-15switching power supply 15W 15V 1AIn stockWarranty: €7.70€9.47Login to check your price RS-15-15switching power supply 15W 15V 1AAvailability:In stockNet price:€7.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-15-24switching power supply 15W 24V 0.625AIn stockWarranty: €7.70€9.47Login to check your price RS-15-24switching power supply 15W 24V 0.625AAvailability:In stockNet price:€7.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-15-48switching power supply 15W 48V 0.313AIn stockWarranty: €7.70€9.47Login to check your price RS-15-48switching power supply 15W 48V 0.313AAvailability:In stockNet price:€7.70
Description
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- No load power consumption<0.5W
- All using 105ºC long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70ºC
- Withstand 5G vibration test
- High efficiency, long life and high reliability
Available models:
- 3.3V: RS-15-3.3
- 5V: RS-15-5
- 12V: RS-15-12
- 15V: RS-15-15
- 24V: RS-15-24
- 48V: RS-15-48
Technical Specification
RS-15: 10-15W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| RS-15-3.3 | 3.3V, 0~3.0A | +/-3% | 80mV | 72% | 62.5x51x28mm |
| RS-15-5 | 5V, 0~3.0A | +/-2% | 80mV | 77% | 62.5x51x28mm |
| RS-15-12 | 12V, 0~1.3A | +/-1% | 120mV | 81% | 62.5x51x28mm |
| RS-15-15 | 15V, 0~1.0A | +/-1% | 120mV | 81% | 62.5x51x28mm |
| RS-15-24 | 24V, 0~0.625A | +/-1% | 200mV | 82% | 62.5x51x28mm |
| RS-15-48 | 48V, 0~0.313A | +/-1% | 200mV | 82% | 62.5x51x28mm |
