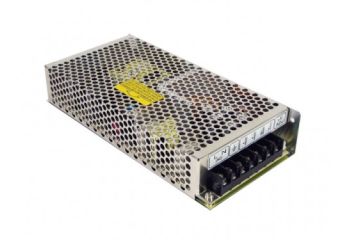

RS-150
Enclosed power supply RS: RS-150-3.3, RS-150-5, RS-150-12, RS-150-15, RS-150-24, RS-150-48
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- No load power consumption<0.5W
- All using 105ºC long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70ºC
- Withstand 5G vibration test
- High efficiency, long life and high reliability
Price from €23.10 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-150-3.3switching power supply 100W 3.3V 30AIn stockWarranty: €23.10€28.41Login to check your price RS-150-3.3switching power supply 100W 3.3V 30AAvailability:In stockNet price:€23.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-150-5switching power supply 150W 5V 26AIn delivery Warranty: €23.10€28.41Login to check your price RS-150-5switching power supply 150W 5V 26AAvailability: In deliveryNet price:€23.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-150-12switching power supply 150W 12V 12.5AIn stockWarranty: €23.10€28.41Login to check your price RS-150-12switching power supply 150W 12V 12.5AAvailability:In stockNet price:€23.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-150-15switching power supply 150W 15V 10AIn stockWarranty: €23.10€28.41Login to check your price RS-150-15switching power supply 150W 15V 10AAvailability:In stockNet price:€23.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-150-24switching power supply 150W 24V 6.5AIn stockWarranty: €23.10€28.41Login to check your price RS-150-24switching power supply 150W 24V 6.5AAvailability:In stockNet price:€23.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-150-48switching power supply 150W 48V 3.3AIn stockWarranty: €23.10€28.41Login to check your price RS-150-48switching power supply 150W 48V 3.3AAvailability:In stockNet price:€23.10
Description
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- No load power consumption<0.5W
- All using 105ºC long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70ºC
- Withstand 5G vibration test
- High efficiency, long life and high reliability
Available models:
- 3.3V: RS-150-3.3
- 5V: RS-150-5
- 12V: RS-150-12
- 15V: RS-150-15
- 24V: RS-150-24
- 48V: RS-150-48
Technical Specification
RS-150: 99-158W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| RS-150-3.3 | 3.3V, 0~30A | +/-3% | 80mV | 74% | 199x98x38mm |
| RS-150-5 | 5V, 0~26A | +/-2% | 80mV | 78% | 199x98x38mm |
| RS-150-12 | 12V, 0~12.5A | +/-1% | 120mV | 83% | 199x98x38mm |
| RS-150-15 | 15V, 0~10A | +/-1% | 120mV | 84% | 199x98x38mm |
| RS-150-24 | 24V, 0~6.5A | +/-1% | 120mV | 86% | 199x98x38mm |
| RS-150-48 | 48V, 0~3.3A | +/-1% | 200mV | 87% | 199x98x38mm |
