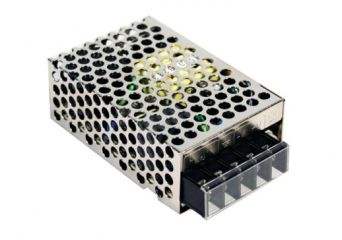

RS-25
Enclosed power supply RS: RS-25-3.3, RS-25-5, RS-25-12, RS-25-15, RS-25-24, RS-25-48
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105ºC long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70ºC
- Withstand 5G vibration test
- No load power consumption<0.5W
- High efficiency, long life and high reliability
Price from €9.60 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-25-3.3switching power supply 25W 3.3V 6AIn stockWarranty: €9.60€11.81Login to check your price RS-25-3.3switching power supply 25W 3.3V 6AAvailability:In stockNet price:€9.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-25-5switching power supply 25W 5V 5AIn delivery Warranty: €9.60€11.81Login to check your price RS-25-5switching power supply 25W 5V 5AAvailability: In deliveryNet price:€9.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-25-12switching power supply 25W 12V 2.1AIn stockWarranty: €9.60€11.81Login to check your price RS-25-12switching power supply 25W 12V 2.1AAvailability:In stockNet price:€9.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-25-15switching power supply 25W 15V 1.7AIn stockWarranty: €9.60€11.81Login to check your price RS-25-15switching power supply 25W 15V 1.7AAvailability:In stockNet price:€9.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-25-24switching power supply 25W 24V 1.1AIn stockWarranty: €9.60€11.81Login to check your price RS-25-24switching power supply 25W 24V 1.1AAvailability:In stockNet price:€9.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-25-48switching power supply 25W 48V 0.57AOut of stock Warranty: €9.60€11.81Login to check your price RS-25-48switching power supply 25W 48V 0.57AAvailability: Out of stockNet price:€9.60
Description
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105ºC long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70ºC
- Withstand 5G vibration test
- No load power consumption<0.5W
- High efficiency, long life and high reliability
Available models:
- 3.3V: RS-25-3.3
- 5V: RS-25-5
- 12V: RS-25-12
- 15V: RS-25-15
- 24V: RS-25-24
- 48V: RS-25-48
Technical Specification
RS-25: 20-27W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| RS-25-3.3 | 3.3V, 0~6.0A | +/-3% | 80mV | 72% | 78x51x28mm |
| RS-25-5 | 5V, 0~5.0A | +/-2% | 80mV | 77% | 78x51x28mm |
| RS-25-12 | 12V, 0~2.1A | +/-1% | 120mV | 79% | 78x51x28mm |
| RS-25-15 | 15V, 0~1.7A | +/-1% | 120mV | 82% | 78x51x28mm |
| RS-25-24 | 24V, 0~1.1A | +/-1% | 120mV | 84% | 78x51x28mm |
| RS-25-48 | 48V, 0~0.57A | +/-1% | 200mV | 85% | 78x51x28mm |
