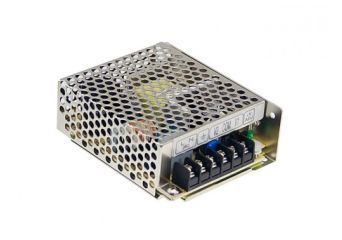

RS-35
Enclosed power supply RS: RS-35-3.3, RS-35-5, RS-35-12, RS-35-15, RS-35-24, RS-35-48
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- No load power consumption<0.5W
- All using 105ºC long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70ºC
- Withstand 5G vibration test
- High efficiency, long life and high reliability
Price from €12.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-35-3.3switching power supply 35W 3.3V 7AOut of stock Warranty: €12.00€14.76Login to check your price RS-35-3.3switching power supply 35W 3.3V 7AAvailability: Out of stockNet price:€12.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-35-5switching power supply 35W 5V 7AIn stockWarranty: €12.00€14.76Login to check your price RS-35-5switching power supply 35W 5V 7AAvailability:In stockNet price:€12.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-35-12switching power supply 35W 12V 3AIn stockWarranty: €12.00€14.76Login to check your price RS-35-12switching power supply 35W 12V 3AAvailability:In stockNet price:€12.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-35-15switching power supply 35W 15V 2.4AIn stockWarranty: €12.00€14.76Login to check your price RS-35-15switching power supply 35W 15V 2.4AAvailability:In stockNet price:€12.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-35-24switching power supply 35W 24V 1.5AIn stockWarranty: €12.00€14.76Login to check your price RS-35-24switching power supply 35W 24V 1.5AAvailability:In stockNet price:€12.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-35-48switching power supply 35W 48V 0.8AOut of stock Warranty: €12.00€14.76Login to check your price RS-35-48switching power supply 35W 48V 0.8AAvailability: Out of stockNet price:€12.00
Description
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- No load power consumption<0.5W
- All using 105ºC long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70ºC
- Withstand 5G vibration test
- High efficiency, long life and high reliability
Available models:
- 3.3V: RS-35-3.3
- 5V: RS-35-5
- 12V: RS-35-12
- 15V: RS-35-15
- 24V: RS-35-24
- 48V: RS-35-48
Technical Specification
RS-35: 23-38W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| RS-35-3.3 | 3.3V, 0~7.0A | +/-3% | 80mV | 73% | 99x82x35mm |
| RS-35-5 | 5V, 0~7.0A | +/-2% | 80mV | 77% | 99x82x35mm |
| RS-35-12 | 12V, 0~3.0A | +/-1% | 120mV | 81% | 99x82x35mm |
| RS-35-15 | 15V, 0~2.4A | +/-1% | 120mV | 83% | 99x82x35mm |
| RS-35-24 | 24V, 0~1.5A | +/-1% | 120mV | 84% | 99x82x35mm |
| RS-35-48 | 48V, 0~0.8A | +/-1% | 200mV | 84% | 99x82x35mm |
