UHP-1000
U-bracket enclosed power supply: UHP-1000-12, UHP-1000-24, UHP-1000-36, UHP-1000-48
- Slim and Low profile (41 mm)
- Fanless and conduction-cooled design
- Withstand 300VAC surge input for 5 seconds
- Built-in active PFC function
- -30~+70°C working temperature
- Output voltage and constant current level programmable
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in remote ON-OFF control
- DC OK active signal
- Operating altitude up to 5000 meter (Note.5)
- LED indicator for power on
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
UHP-1000
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-1000-12switching power supply 960W 12V 80AIn delivery Warranty: €231.40€284.62Login to check your price UHP-1000-12switching power supply 960W 12V 80AAvailability: In deliveryNet price:€231.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-1000-24switching power supply 1008W 24V 42AIn stockWarranty: €231.40€284.62Login to check your price UHP-1000-24switching power supply 1008W 24V 42AAvailability:In stockNet price:€231.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-1000-36switching power supply 1008W 36V 28AOut of stock Warranty: €231.40€284.62Login to check your price UHP-1000-36switching power supply 1008W 36V 28AAvailability: Out of stockNet price:€231.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-1000-48switching power supply 1008W 48V 21AIn stockWarranty: €231.40€284.62Login to check your price UHP-1000-48switching power supply 1008W 48V 21AAvailability:In stockNet price:€231.40
Description

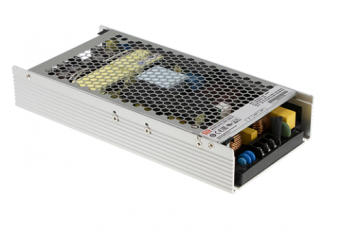

UHP-1000 series is a 1000W single-output slim type power supply with 41mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 12V, 24V, 36V and 48V. In addition to the high efficiency up to 96%, that the whole series operates from -30°C ~70°C under air convection without fan. UHP-1000 has the complete protection functions and 5G anti-vibration capability; It is complied with the international safety regulations such as TUV EN62368-1, UL62368-1 and design refers to EN61558-1 and EN60335-1. UHP-1000 series serves as a high performance power supply solution for various industrial applications.
Avaialble models:
- 12V: UHP-1000-12
- 24V: UHP-1000-24
- 36V: UHP-1000-36
- 48V: UHP-1000-48
Technical Specification
UHP-1000: 960-1008W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| UHP-1000-12 | 12V, 0~80A | +/-1% | 150mV | 94% | 240x115x41mm |
| UHP-1000-24 | 24V, 0~42A | +/-1% | 240mV | 95% | 240x115x41mm |
| UHP-1000-36 | 36V, 0~28A | +/-1% | 250mV | 95.5% | 240x115x41mm |
| UHP-1000-48 | 48V, 0~21A | +/-1% | 300mV | 96% | 240x115x41mm |
