- Slim and Low profile (41 mm)
- Fanless and conduction-cooled design
- Built-in active PFC function
- -30~+70°C working temperature
- Output voltage and constant current level programmable
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in remote ON-OFF control
- DC OK active signal
- Operating altitude up to 5000 meter (Note.7)
- LED indicator for power on
- Optional PMBus or CANBus protocol
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
UHP-1500
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-1500-24switching power supply 1500W 24V 62.5AOut of stock Warranty: €358.20€440.59Login to check your price UHP-1500-24switching power supply 1500W 24V 62.5AAvailability: Out of stockNet price:€358.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-1500-48switching power supply 1512W 48V31.5AIn delivery Warranty: €358.20€440.59Login to check your price UHP-1500-48switching power supply 1512W 48V31.5AAvailability: In deliveryNet price:€358.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-1500-24CANswitching power supply 1500W 24V 62.5AOut of stock Warranty: €383.90€472.20Login to check your price UHP-1500-24CANswitching power supply 1500W 24V 62.5AAvailability: Out of stockNet price:€383.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-1500-48CANswitching power supply 1512W 48V31.5AOut of stock Warranty: €383.90€472.20Login to check your price UHP-1500-48CANswitching power supply 1512W 48V31.5AAvailability: Out of stockNet price:€383.90
Description

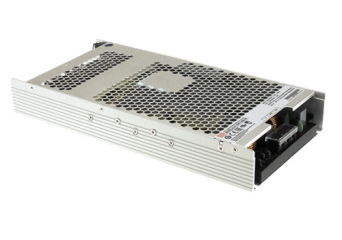

UHP-1500 series is a 1500W single-output slim type power supply with 41mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 24V and 48V. In addition to the high efficiency up to 96%, that the whole series operates from -30°C ~70°C under air convection without fan. UHP-1500 has the complete protection functions and 5G anti-vibration capability; It is complied with the international safety regulations such as TUV EN62368-1, UL62368-1 and design refers to EN61558-1 and EN60335-1. UHP-1500 series serves as a high performance power supply solution for various industrial applications.
Avaialble models:
- 24V: UHP-1500-24
- 48V: UHP-1500-48
Technical Specification
UHP-1500: 1500-1512W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| UHP-1500-24 | 24V, 0~62.5A | +/-1% | 240mV | 95% | 290x140x41mm |
| UHP-1500-48 | 48V, 0~31.5A | +/-1% | 350mV | 96% | 290x140x41mm |
