- Slim and Low profile (60mm)
- Fanless and conduction-cooled design
- Built-in active PFC function
- -30~+70°C working temperature
- Output voltage and constant current level programmable
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in remote ON-OFF control
- DC OK active signal
- Operating altitude up to 5000 meter (Note.7)
- LED indicator for power on
- Optional PMBus or CANBus protocol
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-2500-24switching power supply 2500W 24V 104.2AIn stockWarranty: €531.30€653.50Login to check your price UHP-2500-24switching power supply 2500W 24V 104.2AAvailability:In stockNet price:€531.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-2500-36switching power supply 2500W 36V 69.4AIn stockWarranty: €531.30€653.50Login to check your price UHP-2500-36switching power supply 2500W 36V 69.4AAvailability:In stockNet price:€531.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-2500-48switching power supply 2500W 48V 52.1AOut of stock Warranty: €531.30€653.50Login to check your price UHP-2500-48switching power supply 2500W 48V 52.1AAvailability: Out of stockNet price:€531.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-2500-24CANswitching power supply 2500W 24V 104.2AOut of stock Warranty: €558.70€687.20Login to check your price UHP-2500-24CANswitching power supply 2500W 24V 104.2AAvailability: Out of stockNet price:€558.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-2500-48CANswitching power supply 2500W 48V 52.1AOut of stock Warranty: €558.70€687.20Login to check your price UHP-2500-48CANswitching power supply 2500W 48V 52.1AAvailability: Out of stockNet price:€558.70
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddWHS-656cooling plate for PHP-3500Out of stock Warranty: €162.80€200.24Login to check your price WHS-656cooling plate for PHP-3500Availability: Out of stockNet price:€162.80
Description

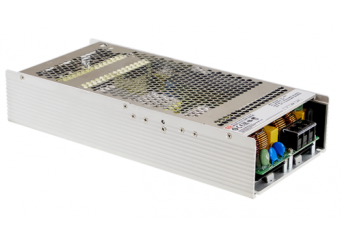

UHP-2500 series is a 2500W single-output slim type power supply with 60mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 24V, 36V and 48V. In addition to the high efficiency up to 96%, that the whole series operates from -30°C ~70°C under air convection without fan. UHP-2500 has the complete protection functions and 2G anti-vibration capability; It is complied with the international safety regulations such as TUV EN62368-1, UL62368-1 and design refers to EN61558-1 and EN60335-1. UHP-2500 series serves as a high performance power supply solution for various industrial applications.
Avaialble models:
- 24V: UHP-2500-24
- 48V: UHP-2500-48
Technical Specification
UHP-2500: 2500.8W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| UHP-2500-24 | 24V, 0~104.2A | +/-1% | 300mV | 95% | 310x140x60mm |
| UHP-2500-48 | 48V, 0~52.1A | +/-1% | 480mV | 96% | 310x140x60mm |
