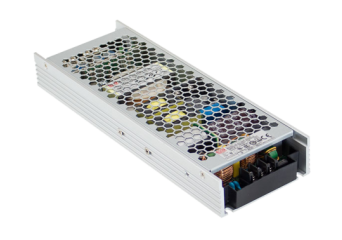

UHP-500
U-bracket enclosed power supply: UHP-500-4.2, UHP-500-5, UHP-500-12, UHP-500-15, UHP-500-24, UHP-500-36, UHP-500-48
- Slim and Low profile (31 mm)
- Fanless design, 500W convection
- Withstand 300VAC surge input for 5 seconds
- Built-in active PFC function
- -20~+70°C working temperature
- Protections: Short circuit / Overload /Over voltage / Over temperature
- DC OK active signal and redundant function (option)
- Operating altitude up to 5000 meter (Note.5)
- LED indicator for power on
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-500-4.2switching power supply 336W 4.2V 90AOut of stock Warranty: €95.10€116.97Login to check your price UHP-500-4.2switching power supply 336W 4.2V 90AAvailability: Out of stockNet price:€95.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-500-5switching power supply 400W 5V 80AOut of stock Warranty: €95.10€116.97Login to check your price UHP-500-5switching power supply 400W 5V 80AAvailability: Out of stockNet price:€95.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-500-12switching power supply 500W 12V 41.7AIn delivery Warranty: €85.00€104.55Login to check your price UHP-500-12switching power supply 500W 12V 41.7AAvailability: In deliveryNet price:€85.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-500-15switching power supply 500W 15V 33.4AOut of stock Warranty: €85.00€104.55Login to check your price UHP-500-15switching power supply 500W 15V 33.4AAvailability: Out of stockNet price:€85.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-500-24switching power supply 500W 24V 20.9AIn stockWarranty: €85.00€104.55Login to check your price UHP-500-24switching power supply 500W 24V 20.9AAvailability:In stockNet price:€85.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-500-36switching power supply 500W 36V 13.9AOut of stock Warranty: €85.00€104.55Login to check your price UHP-500-36switching power supply 500W 36V 13.9AAvailability: Out of stockNet price:€85.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-500-48switching power supply 500W 48V 10.45AIn stockWarranty: €85.00€104.55Login to check your price UHP-500-48switching power supply 500W 48V 10.45AAvailability:In stockNet price:€85.00
Description
UHP-500 series is a 500W single-output slim type power supply with 31 mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 4.2V, 5V, 12V, 15V, 24V, 36V, 48V and 55V. ln addition to the high efficiency up to 95%, that the whole series operates from -20°C ~70°C under air convection without fan. UHP-500 has the complete protection functions and 5G anti-vibration capability;lt is complied with the international safety regulations such as TUV EN62368-1, EN60335-1, UL 62368-1 and GB4943. UHP-500 series serves as a high performance power supply solution for various industrial applications.
Available models:
- 4.2: UHP-500-4.2
- 5V: UHP-500-5
- 12V: UHP-500-12
- 15V: UHP-500-15
- 24V: UHP-500-24
- 36V: UHP-500-36
- 48V: UHP-500-48
Technical Specification
UHP-500: 336-501W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| UHP-500-4.2 | 4.2V, 0~80A | +/-2% | 200mV | 89% | 232x81x31mm |
| UHP-500-5 | 5V, 0~80A | +/-2% | 200mV | 90% | 232x81x31mm |
| UHP-500-12 | 12V, 0~41.7A | +/-1% | 240mV | 94% | 232x81x31mm |
| UHP-500-15 | 15V, 0~33,4A | +/-1% | 240mV | 94% | 232x81x31mm |
| UHP-500-24 | 24V, 0~20.9A | +/-1% | 240mV | 94.5% | 232x81x31mm |
| UHP-500-36 | 36V, 0~13.9A | +/-1% | 360mV | 95% | 232x81x31mm |
| UHP-500-48 | 48V, 0~10.45A | +/-1% | 360mV | 95% | 232x81x31mm |
