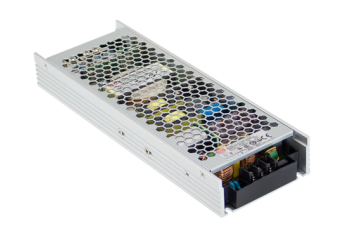

UHP-750
U-bracket enclosed power supply: UHP-750-12, UHP-750-24, UHP-750-36, UHP-750-48
- Slim and Low profile (41 mm)
- Fanless and conduction-cooled design
- Withstand 300VAC surge input for 5 seconds
- Built-in active PFC function
- -30~+70°C working temperature
- Protections: Short circuit / Overload / Over voltage / Over temperature
- DC OK relay contact
- Operating altitude up to 5000 meter (Note.6)
- LED indicator for power on
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-750-12switching power supply 720W 12V 60AIn stockWarranty: €174.80€215.00Login to check your price UHP-750-12switching power supply 720W 12V 60AAvailability:In stockNet price:€174.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-750-24switching power supply 750W 24V 31.3AIn stockWarranty: €174.80€215.00Login to check your price UHP-750-24switching power supply 750W 24V 31.3AAvailability:In stockNet price:€174.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-750-36switching power supply 750W 36V 20.9AOut of stock Warranty: €174.80€215.00Login to check your price UHP-750-36switching power supply 750W 36V 20.9AAvailability: Out of stockNet price:€174.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-750-48switching power supply 750W 48V 15.7AOut of stock Warranty: €174.80€215.00Login to check your price UHP-750-48switching power supply 750W 48V 15.7AAvailability: Out of stockNet price:€174.80
Description
UHP-750 series is a 750W single-output slim type power supply with 41 mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 12V, 24V, 36V and 48V. In addition to the high efficiency up to 95%, that the whole series operates from -30°C ~70°C under air convection without fan. UHP-750 has the complete protection functions and 5G anti-vibration capability; It is complied with the international safety regulations such as TUV EN62368-1 and UL62368-1 and design refers to EN61558-1 and EN60335-1. UHP-750 series serves as a high performance power supply solution for various industrial applications.
Available models:
- 12V: UHP-750-12
- 24V: UHP-750-24
- 36V: UHP-750-36
- 48V: UHP-750-48
Technical Specification
UHP-750: 720-753W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| UHP-750-12 | 12V, 0~60A | +/-1% | 150mV | 93.5% | 237x100x41mm |
| UHP-750-24 | 24V, 0~31.3A | +/-1% | 200mV | 95% | 237x100x41mm |
| UHP-750-36 | 36V, 0~20.9A | +/-1% | 250mV | 95% | 237x100x41mm |
| UHP-750-48 | 48V, 0~15.75A | +/-1% | 250mV | 95% | 237x100x41mm |
