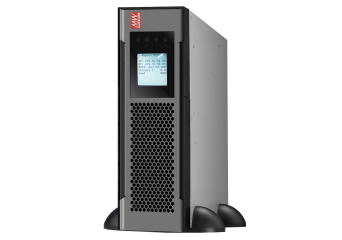

ES-TU6K-RL

6 kVA Online UPS

  • DSP control technology
  • Supports fuel generator input
  • Input power factor ≥ 0.99
  • Input current harmonic distortion ≤ 4%
  • Output power factor of 1
  • 50/60 Hz frequency conversion mode
  • Emergency power-off function (EPO)
  • USB and RS-232 communication interfaces
  • LCD display panel
Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

Product intended for professional use only
ES-TU6K-RL

ES-TU6K-RL

Description

The ES-TU6K-RL is a 6KVA online UPS power supply, providing rack type and tower type two appearance structures, using advanced digital control technology, combined with high integrated circuits and optimized design, enhance anti-interference ability, and ensure stable performance. The product has a full load efficiency of up to 91%, an input power factor of over 0.99, and a current harmonic of less than or equal to 4%, which can effectively prevent additional energy loss and reduce grid pollution. Its ultra-wide voltage input range is compatible with unstable power grids and fuel generators, which can easily cope with harsh power environments, reduce the need for frequent switching to battery power, and accurately match the needs of highly sensitive loads such as servers and medical equipment. In addition, the product has built-in EPO emergency power-off function and USB/RS-232 dual communication interfaces, which further strengthens the system security and remote control capabilities, It provides efficient, stable and flexible power protection solutions for key scenarios such as data centers, intelligent manufacturing, and communication base stations.

Technical Specification

Model Input voltage Output voltage
(settable)
Output power Output THD Communication interface Enclosure type
Dimensions
(WxHxD)
ES-TU6K-RL L-N: 88~155 VAC
L-L: 152~269 VAC
(40~70 Hz)
100/200 VAC
110/220 VAC
120/208 VAC
120/240 VAC
127/220 VAC
(46~54/56~64 Hz - AC mode
50/60 Hz - Battery mode)
6 kVA
6 kW
<2% (Linear load)
<3% (Non-linear load)
RS-232
USB
Rack (2U)
610x88x438 mm
