Manufacturer: MEAN WELL
- Compact dimensions
- Input voltage range 90~264VAC
- Built-in PFC
- Control using an external controller
- Cooling with open air circulation
- Possibility of 5-second overload up to 200% power
- Short-circuit and overcurrent protection
- Built-in temperature and input voltage sensor
- Permissible operating temperature range -30~60°C
- 3 years warranty
Price from €81.20 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
VFD-750C-230
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddVFD-750C-230variable frequency drive 750W 90~264VAC/0~240VIn stockWarranty: €81.20€99.88Login to check your price VFD-750C-230variable frequency drive 750W 90~264VAC/0~240VAvailability:In stockNet price:€81.20
Description

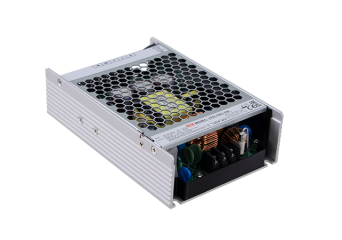

VFD-750C-230 is an inverter module designed to control an external PWM controller. The input voltage range is 90~264VAC and the output voltage range is 0~240V. Thanks to its high efficiency, compact design and convection cooling, the module is perfect for installation inside the end device. The device has the ability to overload for 5 seconds to 200% of the rated power. VFD-750C-230 is dedicated to driving BLDC and induction motors and SynRM solutions.
Technical Specification
- VFD-750C-230: SPECIFICATION
| Model | Input | Output | Output freq. | Efficiency | Dimensions |
| VFD-750C-230 | 90~264VAC | 0~240V, 3A | 2.5kHz~15kHz | 93% | 150x100x41mm |
