- two independent DALI buses
- built-in magistrail power supply (up to 250mA per bus)
- possibility to connect 2x64 DALI actuators
- up to 16 scenes per channel
- LCD display
- 4 built-in relays (250V / 5A)
- configuration via built-in USB port
- configurable via Ethernet output
- KNX gateway function (in DLC-02KN models)
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
DLC-02KN
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDLC-02-KNKNX-DALI-2 gatewayIn stockWarranty: €319.50€392.99Login to check your price DLC-02-KNKNX-DALI-2 gatewayAvailability:In stockNet price:€319.50
Description

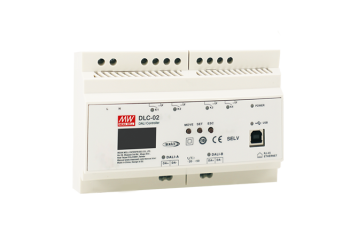

DLC-02 is a multifunctional DALI controller equipped with two independent DALI buses (each with a current of up to 250mA), and the possibility of connecting up to 64 actuators in one bus. Up to 12 input devices numbered 202, 207, 208 (according to IEC 62386) can be connected to a single bus. Thanks to the built-in USB port, simple and quick configuration is possible via PC software. Free software for device configuration can be downloaded from the MEAN WELL website (link).
The DLC-02KN model is equipped with a KNX gateway function: it enables the integration of the DALI lighting system with the KNX system.
Technical Specification
- DALI controller with KNX gateway function: DLC-02 - (see details)
