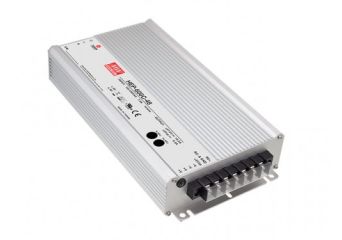

HEP-600C
Industrial battery charger - harsh enviroment: HEP-600C-12, HEP-600C-24, HEP-600C-48
- Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
- 3 stage charging
- Universal AC input / Full range (up to 305VAC)
- Built-in active PFC function
- No load power consumption <0.5W at remote OFF
- High efficiency up to 95.5%
- Fanless design, cooling by free air convection
- Aluminum case and filling with heat-conducted glue
- Withstand 10G vibration test
- -40 ~+70°C wide operating range
- Output voltage and output current can be adjusted through internal potentiometer
- Protection: Short circuit / Over voltage / Over temperature
- 3 color LED loading indicator
- Operating altitude up to 5000 meters (Note.5)
Price from €219.40 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
HEP-600C
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-600C-12battery charger 600W 14.4V 35AIn stockWarranty: €219.40€269.86Login to check your price HEP-600C-12battery charger 600W 14.4V 35AAvailability:In stockNet price:€219.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-600C-24battery charger 600W 28.8V 21AOut of stock Warranty: €219.40€269.86Login to check your price HEP-600C-24battery charger 600W 28.8V 21AAvailability: Out of stockNet price:€219.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-600C-48battery charger 600W 57.6V 10.5AIn stockWarranty: €219.40€269.86Login to check your price HEP-600C-48battery charger 600W 57.6V 10.5AAvailability:In stockNet price:€219.40
Description
HEP-6000 series is an AC-to-DC battery charger providing up to 600W, designed with aluminum case and fully potted by silicone. It features the high efficiency (up to 95.5%), waterproof and low no-load power consumption (<0.5W) at remote OFF. Incorporating state of the art design, the fan-less HEP-600C is capable of working under high-vibration (10G), dusty, humid, and oily environment. Other features include adjustable voltage/current and wide working temperature range (-40~+70°C).
Available models:
- 14.4V: HEP-600C-12
- 28.8V: HEP-600C-24
- 57.6V: HEP-600C-48
Technical Specification
HEP-600C: 504-604 W DETAILS
| Model | Output | Efficiency | Dimension |
| HEP-600C-12 | 14.4V, 0~35A | 93.5% | 280x144x48.5mm |
| HEP-600C-24 | 28.8V, 0~21A | 94.5% | 280x144x48.5mm |
| HEP-600C-48 | 57.6V, 0~10.5A | 95.5% | 280x144x48.5mm |
