Manufacturer: MEAN WELL
- supply voltage: 90-264VAC; 127-370VDC
- built-in active PFC function
- power consumption in no-load state up to <0.5W
- 300VAC surge resistance for 5 seconds
- short-circuit, overload, overvoltage and thermal protection
- regulation of output voltage and current with a potentiometer
- aluminum housing filled with thermally conductive adhesive
- cooling with open air circulation
- vibration resistance up to 10G
- working temperature -55 ~ + 70 ° C
- efficiency up to 96%
- compliance with a number of standards and certificates
- available models with IP65 and IP68 (option)
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €72.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-100-12Aswitching power supply 100W 12V 8.34AOut of stock Warranty: €72.00€88.56Login to check your price HEP-100-12Aswitching power supply 100W 12V 8.34AAvailability: Out of stockNet price:€72.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-100-15Aswitching power supply 100W 15V 6.67AOut of stock Warranty: €72.00€88.56Login to check your price HEP-100-15Aswitching power supply 100W 15V 6.67AAvailability: Out of stockNet price:€72.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-100-24Aswitching power supply 100W 24V 4AOut of stock Warranty: €72.00€88.56Login to check your price HEP-100-24Aswitching power supply 100W 24V 4AAvailability: Out of stockNet price:€72.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-100-36Aswitching power supply 100W 36V 2.65AOut of stock Warranty: €72.00€88.56Login to check your price HEP-100-36Aswitching power supply 100W 36V 2.65AAvailability: Out of stockNet price:€72.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-100-48Aswitching power supply 100W 48V 2AOut of stock Warranty: €72.00€88.56Login to check your price HEP-100-48Aswitching power supply 100W 48V 2AAvailability: Out of stockNet price:€72.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-100-54Aswitching power supply 100W 54V 1.77AOut of stock Warranty: €72.00€88.56Login to check your price HEP-100-54Aswitching power supply 100W 54V 1.77AAvailability: Out of stockNet price:€72.00
Description

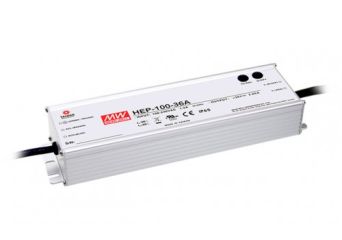

The MEAN WELL HEP-100 power supply has a solid metal, and most importantly - dustproof housing, so it can be used in dusty or wet conditions.
Technical Specification
- HEP-100 : Fanless power supply for harsh environmental conditions 96-100.1W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| HEP-100-12A | 12V, 0~8.34A | +/-1% | 120mV | 93% | 300mm | 220x68x38.8mm |
| HEP-100-15A | 15V, 0~6.67A | +/-1% | 150mV | 93% | 300mm | 220x68x38.8mm |
| HEP-100-24A | 24V, 0~4A | +/-1% | 150mV | 93% | 300mm | 220x68x38.8mm |
| HEP-100-36A | 36V, 0~2.65A | +/-1% | 200mV | 93% | 300mm | 220x68x38.8mm |
| HEP-100-48A | 48V, 0~2A | +/-1% | 200mV | 93% | 300mm | 220x68x38.8mm |
| HEP-100-54A | 54V, 0~1.77A | +/-1% | 200mV | 93% | 300mm | 220x68x38.8mm |
