Manufacturer: MEAN WELL
- supply voltage: 90-264VAC; 127-370VDC
- built-in active PFC function
- power consumption in no-load state up to <0.5W
- 300VAC surge resistance for 5 seconds
- short-circuit, overload, overvoltage and thermal protection
- regulation of output voltage and current with a potentiometer
- aluminum housing filled with thermally conductive adhesive
- cooling with open air circulation
- vibration resistance up to 10G
- working temperature -55 ~ + 70 ° C
- efficiency up to 96%
- compliance with a number of standards and certificates
- available models with IP65 and IP68 (option)
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €77.10 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-185-12Aswitching power supply 185W 12V 13AOut of stock Warranty: €77.10€94.83Login to check your price HEP-185-12Aswitching power supply 185W 12V 13AAvailability: Out of stockNet price:€77.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-185-15Aswitching power supply 185W 15V 11.5AOut of stock Warranty: €77.10€94.83Login to check your price HEP-185-15Aswitching power supply 185W 15V 11.5AAvailability: Out of stockNet price:€77.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-185-24Aswitching power supply 185W 24V 7.8AOut of stock Warranty: €77.10€94.83Login to check your price HEP-185-24Aswitching power supply 185W 24V 7.8AAvailability: Out of stockNet price:€77.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-185-36Aswitching power supply 185W 36V 5.2AOut of stock Warranty: €77.10€94.83Login to check your price HEP-185-36Aswitching power supply 185W 36V 5.2AAvailability: Out of stockNet price:€77.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-185-48Aswitching power supply 185W 48V 3.9AOut of stock Warranty: €77.10€94.83Login to check your price HEP-185-48Aswitching power supply 185W 48V 3.9AAvailability: Out of stockNet price:€77.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-185-54Aswitching power supply 185W 54V 3.45AOut of stock Warranty: €77.10€94.83Login to check your price HEP-185-54Aswitching power supply 185W 54V 3.45AAvailability: Out of stockNet price:€77.10
Description

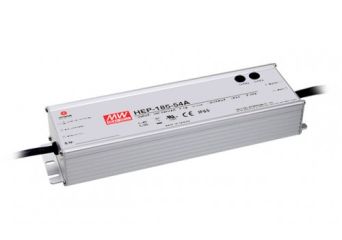

MEAN WELL HEP-185 power supplies feature a fanless aluminum construction, which allows the devices to be used in harsh environmental conditions. HEP models are available with screw terminals for easy and quick installation.
Technical Specification
- HEP-185 : Fanless power supply for harsh environmental conditions 156-187.2W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| HEP-185-12A | 12V, 0~13A | +/-2.5% | 150mV | 91.5% | 300mm | 228x68x38.8mm |
| HEP-185-15A | 15V, 0~11.5A | +/-2% | 150mV | 92% | 300mm | 228x68x38.8mm |
| HEP-185-24A | 24V, 0~7.8A | +/-1% | 150mV | 93.5% | 300mm | 228x68x38.8mm |
| HEP-185-36A | 36V, 0~5.2A | +/-1% | 200mV | 93.5% | 300mm | 228x68x38.8mm |
| HEP-185-48A | 48V, 0~3.9A | +/-1% | 200mV | 94% | 300mm | 228x68x38.8mm |
| HEP-185-54A | 54V, 0~3.45A | +/-1% | 200mV | 94% | 300mm | 228x68x38.8mm |
