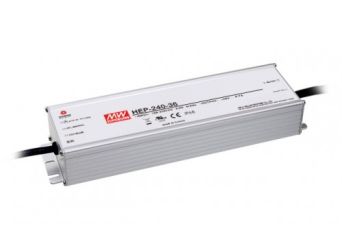

HEP-240
Fanless power supply for harsh environmental conditions
- supply voltage: 90-264VAC; 127-370VDC
- built-in active PFC function
- power consumption in no-load state up to <0.5W
- 300VAC surge resistance for 5 seconds
- short-circuit, overload, overvoltage and thermal protection
- regulation of output voltage and current with a potentiometer
- aluminum housing filled with thermally conductive adhesive
- cooling with open air circulation
- vibration resistance up to 10G
- working temperature -55 ~ + 70 ° C
- efficiency up to 96%
- compliance with a number of standards and certificates
- available models with IP65 and IP68 (option)
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €90.80 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-240-12Aswitching power supply 240W 12V 16AOut of stock Warranty: €90.80€111.68Login to check your price HEP-240-12Aswitching power supply 240W 12V 16AAvailability: Out of stockNet price:€90.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-240-15Aswitching power supply 240W 15V 15AOut of stock Warranty: €90.80€111.68Login to check your price HEP-240-15Aswitching power supply 240W 15V 15AAvailability: Out of stockNet price:€90.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-240-24Aswitching power supply 240W 24V 10AIn stockWarranty: €90.80€111.68Login to check your price HEP-240-24Aswitching power supply 240W 24V 10AAvailability:In stockNet price:€90.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-240-36Aswitching power supply 240W 36V 6.7AOut of stock Warranty: €90.80€111.68Login to check your price HEP-240-36Aswitching power supply 240W 36V 6.7AAvailability: Out of stockNet price:€90.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-240-48Aswitching power supply 240W 48V 5AOut of stock Warranty: €90.80€111.68Login to check your price HEP-240-48Aswitching power supply 240W 48V 5AAvailability: Out of stockNet price:€90.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHEP-240-54Aswitching power supply 240W 54V 4.45AOut of stock Warranty: €90.80€111.68Login to check your price HEP-240-54Aswitching power supply 240W 54V 4.45AAvailability: Out of stockNet price:€90.80
Description
The MEAN WELL HEP-240 power supply is characterized by a sealed housing in accordance with IP65, thanks to which it can be used in dusty environments.
Technical Specification
- HEP-240 : power supply for harsh environmental conditions 192-240.3W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| HEP-240-12A | 12V, 0~16A | +/-2.5% | 150mV | 90% | 300mm | 244.2x68x38.8mm |
| HEP-240-15A | 15V, 0~15A | +/-2% | 150mV | 90% | 300mm | 244.2x68x38.8mm |
| HEP-240-24A | 24V, 0~10A | +/-1% | 150mV | 92.5% | 300mm | 244.2x68x38.8mm |
| HEP-240-36A | 36V, 0~6.7A | +/-1% | 250mV | 92.5% | 300mm | 244.2x68x38.8mm |
| HEP-240-48A | 48V, 0~5A | +/-1% | 250mV | 93% | 300mm | 244.2x68x38.8mm |
| HEP-240-54A | 54V, 0~4.45A | +/-1% | 350mV | 93.5% | 300mm | 244.2x68x38.8mm |
