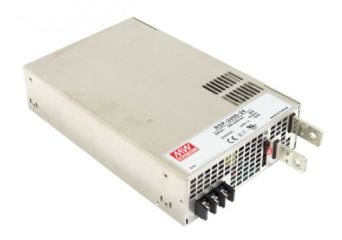

RSP-2400
Enclosed high-power power supply: RSP-2400-12, RSP-2400-24, RSP-2400-48
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- AC input 180~264VAC
- Built-in active PFC function
- High efficiency up to 91.5%
- Forced air cooling by built-in DC fan
- Output voltage programmable
- Active current sharing up to 7200W (2+1)
- Built-in remote ON-OFF control / remote sense / auxiliary power / power OK signal
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Optional conformal coating
Price from €455.90 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
RSP-2400
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSP-2400-12switching power supply 2000W 12V 166.7AIn stockWarranty: €455.90€560.76Login to check your price RSP-2400-12switching power supply 2000W 12V 166.7AAvailability:In stockNet price:€455.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSP-2400-24switching power supply 2400W 24V 100AIn stockWarranty: €455.90€560.76Login to check your price RSP-2400-24switching power supply 2400W 24V 100AAvailability:In stockNet price:€455.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSP-2400-48switching power supply 2400W 48V 50AIn stockWarranty: €455.90€560.76Login to check your price RSP-2400-48switching power supply 2400W 48V 50AAvailability:In stockNet price:€455.90
Description
RSP-2400 is a 2.4KW single output enclosed type AC/DC power supply. This series operates for 180~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70°C. Moreover, RSP-2400 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.
Available models:
- 12V: RSP-2400-12
- 24V: RSP-2400-24
- 48V: RSP-2400-48
Technical Specification
RSP-2400: 2000-2400W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| RSP-2400-12 | 12V, 0~166.7A | +/-1% | 150mV | 87% | 278x177x63.5mm |
| RSP-2400-24 | 24V, 0~100A | +/-1% | 150mV | 89.5% | 278x177x63.5mm |
| RSP-2400-48 | 48V, 0~50A | +/-1% | 200mV | 91.5% | 278x177x63.5mm |
