RSP-3000
Enclosed high-power power supply: RSP-3000-12, RSP-3000-24, RSP-3000-48
- AC input 180~264VAC
- Built-in active PFC function
- High efficiency up to 91.5%
- Forced air cooling by built-in DC fan
- Output voltage programmable
- Active current sharing up to 9000W (2+1 )
- Built-in remote ON-OFF control / remote sense / auxiliary power / power OK signal
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Optional conformal coating
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
RSP-3000
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSP-3000-12switching power supply 2400W 12V 200AIn stockWarranty: €522.70€642.92Login to check your price RSP-3000-12switching power supply 2400W 12V 200AAvailability:In stockNet price:€522.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSP-3000-24switching power supply 3000W 24V 125AIn delivery Warranty: €522.70€642.92Login to check your price RSP-3000-24switching power supply 3000W 24V 125AAvailability: In deliveryNet price:€522.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSP-3000-48switching power supply 3000W 48V 62.5AIn stockWarranty: €522.70€642.92Login to check your price RSP-3000-48switching power supply 3000W 48V 62.5AAvailability:In stockNet price:€522.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSP-3000-48-1switching power supply 3000W 48V 62.5AOut of stock Warranty: €522.70€642.92Login to check your price RSP-3000-48-1switching power supply 3000W 48V 62.5AAvailability: Out of stockNet price:€522.70
Description

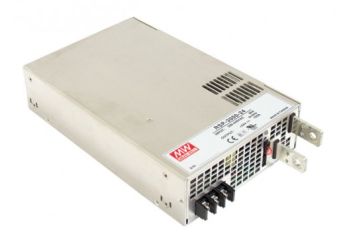

RSP-3000 is a 3KW single output enclosed type AC/DC power supply. T his series operates for 180~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70°C. Moreover, RSP-3000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.
Available models:
- 12V: RSP-3000-12
- 24V: RSP-3000-24
- 48V: RSP-3000-48-1
The RSP-3000-48 model has been replaced by the RSP-3000-48-1. The change results from the modification of the markings by the manufacturer and does not affect the parameters of the power supply.
Technical Specification
RSP-3000: 2400-3000W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| RSP-3000-12 | 12V, 0~200A | +/-1% | 150mV | 86% | 278x177x63.5mm |
| RSP-3000-24 | 24V, 0~125A | +/-1% | 150mV | 90% | 278x177x63.5mm |
| RSP-3000-48 | 48V, 0~62.5A | +/-1% | 200mV | 90.5% | 278x177x63.5mm |
