P1J DC adapters
Price from €0.50 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Manufacturer: MEAN WELL
- wide input voltage range of 90-264VAC
- Replaceable AC plugs (not included, can be purchased separately)
- no-load power consumption <0.075W
- compliant with ErP 2 and EISA 2007
- protections: short circuit, overvoltage and overload protection
- class II insulation
- working temperature -30 ~ + 70 ° C (up to 50 ° C at 70% load)
- compliance with many standards and certificates
- fully enclosed plastic housing
- 2 years warranty
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyUseful products
Description

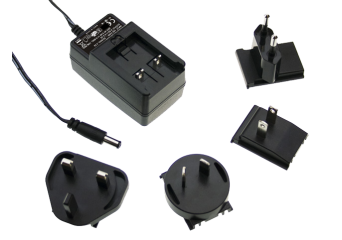

The MEAN WELL GE24 power supply has an output power of 24W and is available in several variants of output voltages. The main feature is the ability to change the input plug, thanks to which the power supply can work in many countries around the world.
Technical Specification
- GE40: power supply 20~40W (details)
| Model | Output | Tolerance | Ripple | Efficiency | Plug | Dimensions |
| GE40I05-P1J | 5V, 0~4A | +/-3% | 100mV | 81% | P1J 2.1Øx5.5Øx11mm | 94x48.4x40mm |
| GE40I07-P1J | 7.5V, 0~2.66A | +/-3% | 100mV | 85% | P1J 2.1Øx5.5Øx11mm | 94x48.4x40mm |
| GE40I09-P1J | 9V, 0~3.3A | +/-3% | 100mV | 86% | P1J 2.1Øx5.5Øx11mm | 94x48.4x40mm |
| GE40I12-P1J |
12V, 0~3.3A |
+/-3% | 120mV | 87% | P1J 2.1Øx5.5Øx11mm | 94x48.4x40mm |
| GE40I15-P1J | 15V, 0~2.7A | +/-3% | 150mV | 87% | P1J 2.1Øx5.5Øx11mm | 94x48.4x40mm |
| GE40I18-P1J | 18V, 0~2.2A | +/-3% | 180mV | 88% | P1J 2.1Øx5.5Øx11mm | 94x48.4x40mm |
| GE40I24-P1J | 24V, 0~1.67A | +/-3% | 240mV | 88% | P1J 2.1Øx5.5Øx11mm | 94x48.4x40mm |
| GE40I36-P1J | 36V, 0~1.11A | +/-3% | 300mV | 89% | P1J 2.1Øx5.5Øx11mm | 94x48.4x40mm |
| GE40I48-P1J | 48V, 0~0.83A | +/-3% | 300mV | 89% | P1J 2.1Øx5.5Øx11mm | 94x48.4x40mm |
