Manufacturer: MEAN WELL
- wide input voltage range of 90-264VAC
- compliance with medical standards (2xMOPP)
- no-load power consumption <0.1W
- low leakage current <100uA
- compliance with the VI level of energy efficiency
- in accordance with the ErP EU standard and the EISA 2007 Act
- protections: short circuit, overvoltage and overload protection
- class II insulation
- working temperature -20 ~ + 70 ° C
- compliance with many standards and certificates
- fully enclosed plastic housing
- Plugs available as a separate item - AC Plug
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Description

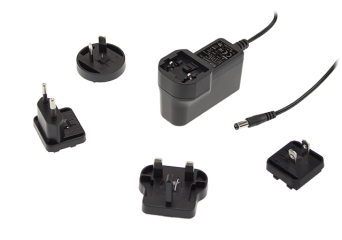

The MEAN WELL GEM06I plug-in medical power supply can be equipped with optional plugs enabling the power supply to work in the EU, USA, UK. The plugs are available as a separate item.
Technical Specification
- GEM06I: Medical power supply with interchangeable plugs 6W DETAILS
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Plug | Dimensions |
| GEM06I05-USB | 5V, 0~1.2A | +/-5% | 50mV | 70% | 2.1Øx5.5Øx11mm | 73.9x39x48.5mm |
| GEM06I06-P1J | 6V, 0~1A | +/-5% | 50mV | 74% | 2.1Øx5.5Øx11mm | 73.9x39x48.5mm |
| GEM06I07-P1J | 7.5V, 0~0.8A | +/-5% | 80mV | 74% | 2.1Øx5.5Øx11mm | 73.9x39x48.5mm |
| GEM06I09-P1J | 9V, 0~0.66A | +/-5% | 80mV | 76% | 2.1Øx5.5Øx11mm | 73.9x39x48.5mm |
| GEM06I12-P1J | 12V, 0~0.5A | +/-5% | 100mV | 76% | 2.1Øx5.5Øx11mm | 73.9x39x48.5mm |
| GEM06I15-P1J | 15V, 0~0.4A | +/-5% | 120mV | 79% | 2.1Øx5.5Øx11mm | 73.9x39x48.5mm |
| GEM06I18-P1J | 18V, 0~0.33A | +/-5% | 150mV | 79% | 2.1Øx5.5Øx11mm | 73.9x39x48.5mm |
| GEM06I24-P1J | 24V, 0~0.25A | +/-4% | 180mV | 80% | 2.1Øx5.5Øx11mm | 73.9x39x48.5mm |
