- Constant Current mode output with multiple levels selectable by dip switch
- KNX/EIB protocol
- Flicker free design
- Support emergency lighting(EL)
- Integrated constant light output
- Integrated KNX push button interface
- Synchronization up to 10units
- Functions: Manual dim, operation hours, power consumption feedback, log/linear curve selection...etc
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5

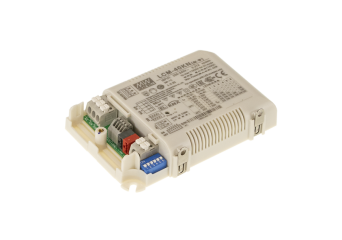

KNX LED driver LCM-40KN MEAN WELL
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLCM-40KNKNX LED driver 40W 2~100V 0.35~1.05AIn stockWarranty: €47.10€57.93Login to check your price LCM-40KNKNX LED driver 40W 2~100V 0.35~1.05AAvailability:In stockNet price:€47.10
Description
LCM-40KN series is a 40W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the KNX interface to avoid using the complicated KNX-DALI gateway. LCM-40KN operates from 180~ 295VAC and offers different current levels ranging between 350mA and 1050mA. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -30°C ~+90°C case temperature under free air convection. In addition, LCM-40KN is equipped with push dimming and synchronization so as to provide the optimal design flexibility for LED lighting system.
Available models:
- LCM-40KN
Technical Specification
LCM-40KN: 42W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| LCM-40KN | 350mA, 2~100V 500mA, 2~80V 600mA, 2~67V 700mA, 2~57V (fab) 900mA, 2~45V 1050mA, 2~40V |
+/-5 | 700mV | 90,5% | 123.5x81.5x23mm |
