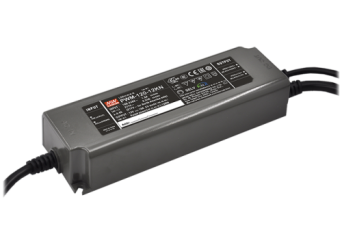

KNX LED driver PWM-120-KN
Constant voltage KNX LED power supply: PWM-120-12KN, PWM-120-24KN
- Constant Voltage PWM style output with user changeable frequency up to 4KHz compliant lEEE1789-2015 and EU Ecodesign SVM requirement
- Min. dimming level 0.01%
- Plastic housing with class II design
- Standby power consumption<0.5W
- Integrated KNX control protocol
- No need KNX-DALI gateway
- Typical lifetime>50000 hours
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
KNX LED driver PWM-120-KN
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-120-12KNKNX LED driver 120W 12V 10AIn stockWarranty: €62.00€76.26Login to check your price PWM-120-12KNKNX LED driver 120W 12V 10AAvailability:In stockNet price:€62.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-120-24KNKNX LED driver 120W 24V 5AIn delivery Warranty: €62.00€76.26Login to check your price PWM-120-24KNKNX LED driver 120W 24V 5AAvailability: In deliveryNet price:€62.00
Description
PWM KN series is a 120W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the colour temperature and the brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs.The built-in KNX interface is to avoid using the complicated KNX-DALI gateway.
PWM KN operates from 90~305VAC and offers two models with output voltage 12V & 24V.Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40°C ~ +90°C case temperature under free air convection.
The minimal dimming level low to 0.01% is suitable for low light level applications e.g. cinema. The output frequency is changeable up to 4KHz complaint IEEE1789-2015 no risk requirement and EU Ecodesign stroboscopic visibilitymeasure(SVM) requirement providing a great solution for health concern due to light fickering.
Available models:
- 12V: PWM-120-12
- 24V: PWM-120-24
Technical Specification
PWM-120-KN: 120W DETAILS
| Model | Output | Tolerance | Efficiency | Cable length | Dimension |
| PWM-120-12 | 12V, 0~10A | +/-4% | 88% | 300mm | 191x63x37.5mm |
| PWM-120-24 | 24V, 0~5A | +/-3% | 90% | 300mm | 191x63x37.5mm |
