CJ04

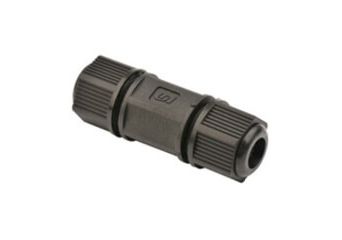

Waterproof connector IP68: CJ04

Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
  • universal waterproof connector
  • IP68 tightness class
  • maximum current: 16A
  • maximum voltage: 250V
  • flammability class acc. to UL94 HB
Price from €5.20 Net price

High price? Log in and buy cheaper

In delivery

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    DS-CJ04-1
    waterproof connector 14AWG-16AWG
    In delivery Warranty:
    €5.20
    €6.40
    Login to check your price
    1 pieces in box
    DS-CJ04-1
    waterproof connector 14AWG-16AWG
    Availability: In delivery
    Net price:
    €5.20
    1 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    DS-CJ04-2
    waterproof connector 18AWG-22AWG
    In delivery Warranty:
    €5.20
    €6.40
    Login to check your price
    1 pieces in box
    DS-CJ04-2
    waterproof connector 18AWG-22AWG
    Availability: In delivery
    Net price:
    €5.20
    1 pieces in box

Description

Universal IP68 waterproof connectors.

Technical Specification

Model Wire diameter [AWG/mm²] Voltage max. [V] Current max. [A] Working temp.
CJ04-1 14~16 AWG (2.8mm ~1.0mm² ) 250V 16A -40~+70°C
CJ04-2 18~22 AWG (0.9mm ~0.3mm² ) 250V 16A -40~+70°C
