- Wide input voltage range: 90 ~ 264VAC, 127 ~ 370VDC
- Charging different types of batteries: lead-acid, lithium-ion (nickel-cobalt and LiFePO4)
- Fan cooling
- Regulation of output current and voltage
- Choice of 2 or 3 step charge curve
- Possibility to program your own charging curve
- Built-in CANBus protocol
- A wide range of acceptable operating temperatures: -30 ~ + 70 ° C
- Short-circuit, overvoltage, temperature and reverse polarity protection
- LED to indicate device status
- Compliance with EN62368, EN60335-1 / 2-29 standards
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPB-1700-12desktop battery charger 1428W 13.8V 85AIn stockWarranty: €333.20€409.84Login to check your price NPB-1700-12desktop battery charger 1428W 13.8V 85AAvailability:In stockNet price:€333.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPB-1700-24desktop battery charger 1680W 27.6V 50AIn stockWarranty: €333.20€409.84Login to check your price NPB-1700-24desktop battery charger 1680W 27.6V 50AAvailability:In stockNet price:€333.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPB-1700-48desktop battery charger 1680W 55.2V 25AIn delivery Warranty: €333.20€409.84Login to check your price NPB-1700-48desktop battery charger 1680W 55.2V 25AAvailability: In deliveryNet price:€333.20
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCarry handleCarry handle for NPB, NTS, NTU seriesIn stockWarranty: €5.20€6.40Login to check your price Carry handleCarry handle for NPB, NTS, NTU seriesAvailability:In stockNet price:€5.20
Description

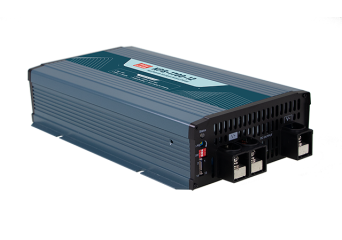

NPB is a series of chargers dedicated to lead-acid and lithium-ion batteries. Works with both nickel-cobalt and iron-phosphate (LiFePO4) batteries. The NPB-1700 model has a power rating of 1428 ~ 1680W and offers an output voltage (depending on the model): 10.5 ~ 21V, 21 ~ 42V or 42 ~ 80VDC. The device has a wide range of output voltage and the function of automatic selection of the charging voltage (only in the case of li-ion batteries with a BMS system). Thanks to this, it will work in applications with many voltages and types of batteries.
NPB-1700 is equipped with CANBus protocol and extensive remote control functions. With the use of an external programmer SPB-001 it is possible to change the charging current and voltage and to program own charging curves. Changing the charging waveforms is also possible from the switch on the housing.
The charger is overvoltage, temperature and reverse polarity protected. The allowable operating temperature range is: -30 ~ + 70 ° C.
Application examples:
- Charging scooters, bicycles and other electric vehicles
- Charging batteries, e.g. electric tools
- Car, caravan and yacht batteries
- Power backup systems
Technical Specification
- NPB-750: Desktop battery charger 1428~1680W - SPECIFICATION
| Model | Output | Efficiency | Plug | Dimensions |
| NPB-1700-12 | 12V, 85A | 92% | terminal śrubowy | 300x184x70mm |
| NPB-1700-24 | 24V, 50A | 93% | terminal śrubowy | 300x184x70mm |
| NPB-1700-48 | 48V, 25A | 93% | terminal śrubowy | 300x184x70mm |
