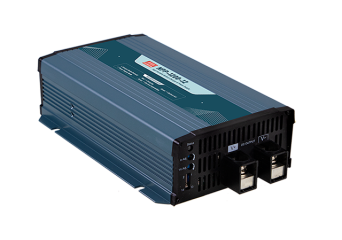

NPP-1200
Battery charger with power adapter mode: NPP-1200-12, NPP-1200-24, NPP-1200-48
- Wide input voltage range: 90 ~ 264VAC, 127 ~ 370VDC
- Model dedicated to lead-acid batteries
- Possibility to select the operating mode: charger / power supply
- Fan cooling
- Regulation of the output current and voltage with a potentiometer
- A wide range of acceptable operating temperatures: -30 ~ + 70 ° C
- Short-circuit, overvoltage, temperature and reverse polarity protection
- Remote on / off
- LED to indicate device status
- Compliance with EN62368, EN60335-1 / 2-29 standards
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
NPP-1200
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPP-1200-12desktop battery charger 1176W 13.8V 70AOut of stock Warranty: €226.20€278.23Login to check your price NPP-1200-12desktop battery charger 1176W 13.8V 70AAvailability: Out of stockNet price:€226.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPP-1200-24desktop battery charger 1210W 27.6V 36AIn stockWarranty: €226.20€278.23Login to check your price NPP-1200-24desktop battery charger 1210W 27.6V 36AAvailability:In stockNet price:€226.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPP-1200-48desktop battery charger 1210W 55.2V 18AOut of stock Warranty: €226.20€278.23Login to check your price NPP-1200-48desktop battery charger 1210W 55.2V 18AAvailability: Out of stockNet price:€226.20
Description
NPP-1200 is a series of 1176 ~ 1209W chargers dedicated to lead-acid batteries. The device can work in the charger mode or as an ordinary power supply. The mode is selected by connecting or disconnecting the connector on the housing. The output current and voltage are regulated by a potentiometer on the housing. The output voltage can be adjusted in the following ranges (depending on the model): 10.5 ~ 21V, 21 ~ 42V or 42 ~ 80VDC.
The device is overvoltage and temperature protected. The acceptable operating temperature range is: -30~+70°C.
Application examples:
- Vehicle battery charging
- Power backup systems
- Power supply for industrial automation devices
Technical Specification
- NPP-1200: Battery charger with power adapter mode 1176~1209W - SPECIFICATION
| Model | Output | Efficiency | Connection | Dimensions |
| NPP-1200-12 | 12V, 70A | 92% | screw terminal | 250x158x67mm |
| NPP-1200-24 | 24V, 36A | 93% | screw terminal | 250x158x67mm |
| NPP-1200-48 | 48V, 18A | 94% | screw terminal | 250x158x67mm |
