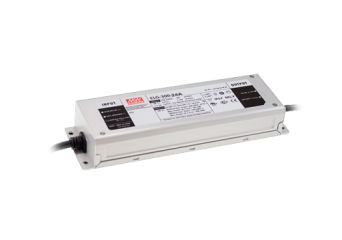

ELG-300

Constant voltage LED power supply: ELG-300-12A, ELG-300-24A

  • Constant Voltage + Constant Current mode output
  • Protection Functions: OCP, SCP, OVP, OTP
  • IP67 rating for indoor or outdoor installations
  • Output adjustable via potentiometer
  • Typical lifetime>50000 hours
Price from €72.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only
zasilacz LED MEAN WELL ELG-300-12-A

ELG-300

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ELG-300-12A
    LED driver 300W 12V 22A
    In stock
    Warranty:
    €72.00
    €88.56
    Login to check your price
    9 pieces in box
    ELG-300-12A
    LED driver 300W 12V 22A
    Availability:
    In stock
    Net price:
    €72.00
    9 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ELG-300-24A
    LED driver 240W 24V 12.5A
    Out of stock Warranty:
    €72.00
    €88.56
    Login to check your price
    9 pieces in box
    ELG-300-24A
    LED driver 240W 24V 12.5A
    Availability: Out of stock
    Net price:
    €72.00
    9 pieces in box

Description

ELG-300 series is a 300W LED driver featuring with constant current and Constant voltage mode design. ELG-300 operates from 100-305VAC and Offers CV mode or CC mode applications. Thanks to the high efficiency up to 94%, with the fanless design, the ambient temperature can be operated for -40°C~+85°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world, as to provide the optimal design flexibility for LED lighting system.

Available models:

  • 12V: ELG-300-12A
  • 24V: ELG-300-24A

Technical Specification

ELG-300: 264~300W DETAILS

Model Output Tolerance Ripple & noise Efficiency Cable length Dimension
ELG-300-12A 12V, 0~22A +/-3% 150mV 91% 300mm 246x77x39.5mm
ELG-300-24A 24V, 0~12.5A +/-2% 240mV 94% 300mm 246x77x39.5mm
