Manufacturer: MEAN WELL
- Constant Power mode output
- Metal housing design
- Full Power at 70~100% max Current
- Built-in active PFC function
- Flicker Free design
- No load / Standby power consumption <0.5W
- Output current level pre-settable
- Function options: 3 in 1 dimming (dim-to-off); DALI interface, push dimming
- Typical Iifetime>50000 hours
- SELV and Isolated
- Class 2 power supply
Price from €24.50 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDC-35LED driver 35W 27~56V 0.3~1AOut of stock Warranty: €24.50€30.14Login to check your price LDC-35LED driver 35W 27~56V 0.3~1AAvailability: Out of stockNet price:€24.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDC-35BLED driver 35W 27~56V 0.3~1AIn stockWarranty: €26.40€32.47Login to check your price LDC-35BLED driver 35W 27~56V 0.3~1AAvailability:In stockNet price:€26.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDC-35DALED driver 35W 27~56V 0.3~1AOut of stock Warranty: €31.00€38.13Login to check your price LDC-35DALED driver 35W 27~56V 0.3~1AAvailability: Out of stockNet price:€31.00
Description

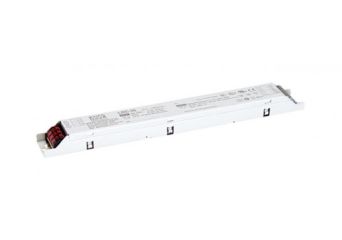

LDC-35 series is a 35W AC/DC LED driver featuring the constant power mode output. LDC-35 operates from 180~295VAC and output current can be adjust between 300mA to 1000mA. Thanks to the efficiency up to 88%, with the fanless design, the entire series is able to operate for -25°C~+80°C case temperature under free air convection. LDC-35 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Available models:
- 27~56V: LDC-35
Technical Specification
LDC-35: 35W DETAILS
| Model | Output | Tolerance | Efficiency | Dimension |
| LDC-35 | 27~56V, 300-1000mA | +/-5% | 88% | 280x30x21mm |
