Manufacturer: MEAN WELL
- Constant Power mode output
- Metal housing design
- Full Power at 70~100% max Current
- Built-in active PFC function
- Flicker Free design
- No load / Standby power consumption <0.5W
- Output current level pre-settable
- Function options: 3 in 1 dimming (dim-to-off); DALI interface, push dimming
- Typical Iifetime>50000 hours
- SELV and Isolated
- Class 2 power supply
Price from €26.40 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDC-55BLED driver 55W 27~56V 0.5~1.6AIn stockWarranty: €28.30€34.81Login to check your price LDC-55BLED driver 55W 27~56V 0.5~1.6AAvailability:In stockNet price:€28.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDC-55LED driver 55W 27~56V 0.5~1.6AIn stockWarranty: €26.40€32.47Login to check your price LDC-55LED driver 55W 27~56V 0.5~1.6AAvailability:In stockNet price:€26.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDC-55DALED driver 55W 27~56V 0.5~1.6A DALIOut of stock Warranty: €32.90€40.47Login to check your price LDC-55DALED driver 55W 27~56V 0.5~1.6A DALIAvailability: Out of stockNet price:€32.90
Description

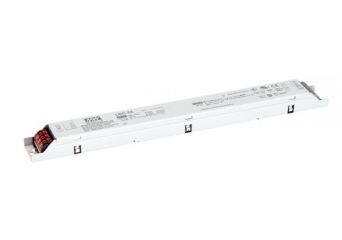

LDC-55 series is a 55W AC/DC LED driver featuring the constant power mode output. LDC-55 operates from 180~295VAC and output current can be adjust between 500mA to 1600mA. Thanks to the efficiency up to 90%, with the fanless design, the entire series is able to operate for -25°C~+80°C case temperature under free air convection. LDC-55 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Available models:
- 27~56V: LDC-55
Technical Specification
LDC-55: 55W DETAILS
| Model | Output | Tolerance | Efficiency | Dimension |
| LDC-55 | 27~56V, 980-1600mA | +/-5% | 90% | 320x30x21mm |
