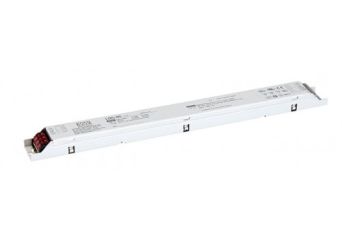

LDC-80
Constant power LED power supply
- Constant Power mode output
- Metal housing design
- Full Power at 70~100% max Current
- Built-in active PFC function
- Flicker Free design
- No load / Standby power consumption <0.5W
- Output current level pre-settable
- Function options: 3 in 1 dimming (dim-to-off); DALI interface, push dimming
- Typical Iifetime>50000 hours
- SELV and Isolated
- Class 2 power supply
Price from €27.50 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDC-80LED driver 80W 27~56V 0.7~2.1AOut of stock Warranty: €27.50€33.82Login to check your price LDC-80LED driver 80W 27~56V 0.7~2.1AAvailability: Out of stockNet price:€27.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDC-80BLED driver 80W 27~56V 0.7~2.1AOut of stock Warranty: €29.10€35.79Login to check your price LDC-80BLED driver 80W 27~56V 0.7~2.1AAvailability: Out of stockNet price:€29.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLDC-80DALED driver 80W 27~56V 0.7~2.1AOut of stock Warranty: €32.60€40.10Login to check your price LDC-80DALED driver 80W 27~56V 0.7~2.1AAvailability: Out of stockNet price:€32.60
Description
LDC-80 series is a 80W AC/DC LED driver featuring the constant power mode output. LDC-80 operates from 180~295VAC and output current can be adjust between 700mA to 2100mA. Thanks to the efficiency up to 90%, with the fanless design, the entire series is able to operate for -25°C~+85°C case temperature under free air convection. LDC-80 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Available models:
- 27~56V: LDC-80
Technical Specification
LDC-80: 80W DETAILS
| Model | Output | Tolerance | Efficiency | Dimension |
| LDC-80 | 27~56V, 1400-2100mA | +/-5% | 90% | 360x30x21mm |
