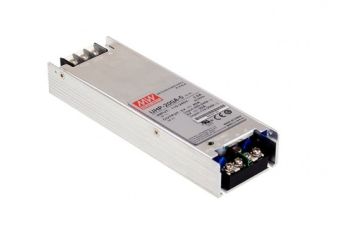

UHP-200A
LED sign panel power supply: UHP-200A-4.2, UHP-200A-4.5, UHP-200A-5
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds
- Low profile:26mm
- Built-in active PFC function
- Fanless design, cooling by free air convection
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Low leakage current<1.0mA
- LED indicator for power on
Price from €47.50 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
UHP-200A
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-200A-4.2switching power supply 168W 4.2V 40AOut of stock Warranty: €47.50€58.43Login to check your price UHP-200A-4.2switching power supply 168W 4.2V 40AAvailability: Out of stockNet price:€47.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-200A-4.5switching power supply 180W 4.5V 40AOut of stock Warranty: €47.50€58.43Login to check your price UHP-200A-4.5switching power supply 180W 4.5V 40AAvailability: Out of stockNet price:€47.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUHP-200A-5switching power supply 200W 5V 40AOut of stock Warranty: €47.50€58.43Login to check your price UHP-200A-5switching power supply 200W 5V 40AAvailability: Out of stockNet price:€47.50
Description
UHP-200A series is a 200W LED display power solution. The ultra low profile design that allows the height and weight of the sign module to be slim. It greatly simplifies the delivery and installation process. Accounting for high efficiency and energy saving, the series effectively achieves electricity reduction. It is suitable for LED signage display, moving sign, LED channel letter and LED TV wall etc.
Available models:
- 4.2V: UHP-200A-4.2
- 4.5V: UHP-200A-4.5
- 5V: UHP-200A-5
Technical Specification
UHP-200A: 168-200W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Cable length | Dimension |
| UHP-200A-4.2 | 4.2V, 0~40A | +/-4% | 200mV | 88% | 300mm | 167x55x26mm |
| UHP-200A-4.5 | 4.5V, 0~40A | +/-4% | 200mV | 88% | 300mm | 167x55x26mm |
| UHP-200A-5 | 5V, 0~40A | +/-4% | 200mV | 88.5% | 300mm | 167x55x26mm |
